MS3102E20 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

CONN RCPT MALE 4P SILV SLDR CUP

Part	Applications	Termination	Qualification	Shell Size - Insert (Minimum)	Shell Size - Insert (Maximum)	Ingress Protection	Color	Mounting Feature	Shell Finish	Orientation	Contact Finish - Mating	Contact Material	Shielding	Shell Material	Fastening Type	Primary Material	Operating Temperature (Max)	Operating Temperature (Min)	Connector Type	Mounting Type	Number of Positions	Cable Opening	Insert Material	Shell Size - Insert Length	Shell Size - Insert Width	Voltage Rating (AC)	Voltage Rating (DC)	Grade	Current Rating Options
Amphenol Aerospace Operations MS3102E20-24P	Marine Military	Solder Cup	MIL-5015	20	24	Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Male Pins Receptacle	Panel Mount	4	1.125 in	Neoprene
Amphenol Aerospace Operations MS3102E20-7S	Marine Military	Solder Cup	MIL-5015			Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Female Sockets Receptacle	Panel Mount	8	1.125 in	Neoprene	20 mm	7 mm
Amphenol Aerospace Operations MS3102E20-24SW
Amphenol Aerospace Operations MS3102E20-8S-ESD CAP	Marine Military	Solder Cup	MIL-5015			Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Female Sockets Receptacle	Panel Mount	6		Neoprene	20 mm	8 mm	200 VAC	250 VDC
Amphenol Aerospace Operations MS3102E20-18S
Amphenol Aerospace Operations MS3102E20-12P
Amphenol Aerospace Operations MS3102E20-4PW	Marine Military	Solder Cup	MIL-5015			Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	W	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Male Pins Receptacle	Panel Mount	4	1.125 in	Neoprene	20 mm	4 mm
Amphenol Aerospace Operations MS3102E20-19S	Marine Military	Solder Cup	MIL-5015			Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Female Sockets Receptacle	Panel Mount	3	1.125 in	Neoprene	20 mm	19 mm

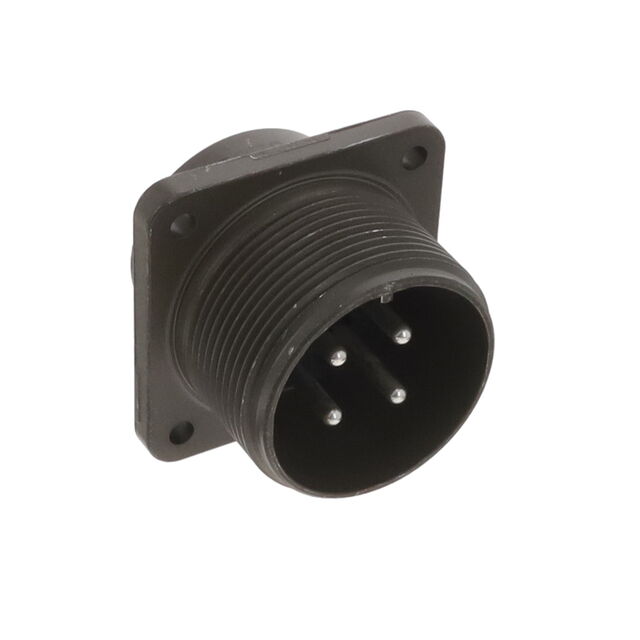

Amphenol Aerospace Operations MS3102E20-4P	Marine Military	Solder Cup	MIL-5015			Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Male Pins Receptacle	Panel Mount	4	1.125 in	Neoprene	20 mm	4 mm
Amphenol Aerospace Operations MS3102E20-24S	Marine Military	Solder Cup	MIL-DTL-5015	20	24	Environment Resistant	Olive Drab	Flange	Cadmium Olive Drab Chromate	N (Normal)	Silver	Copper Alloy	Unshielded	Aluminum Alloy	Threaded	Metal	125 °C	-55 °C	Female Sockets Receptacle	Panel Mount	4		Neoprene					Military	13A 46A
