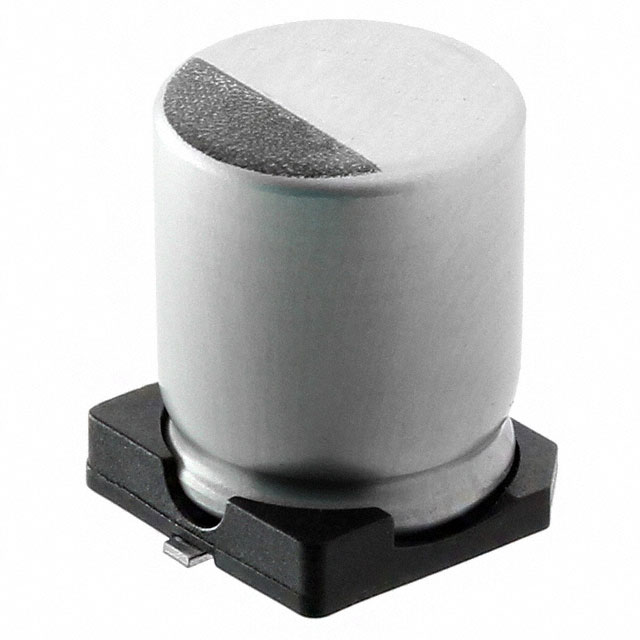

MZR Series

Manufacturer: Chemi-Con

Catalog

ALUMINUM ELECTROLYTIC CAPACITORS - SMD 220UF 16V 20%

Part	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Polarization	Capacitance	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Operating Temperature [Min]	Operating Temperature [Max]	Ratings	Voltage - Rated	Ripple Current @ Low Frequency	Ripple Current @ High Frequency	Applications	Mounting Type	Package / Case	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Surface Mount Land Size [y]	Surface Mount Land Size [x]	Lifetime @ Temp.	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Chemi-Con EMZR160ARA221MF61G	20 %	0.248 "	6.3 mm	Polar	220 µF	260 mOhm	6.1 mm	0.24 "	-55 C	105 ░C	AEC-Q200	16 V	150 mA	300 mA	Automotive	Surface Mount	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	2000 Hrs
Chemi-Con EMZR6R3ARA331MF61G	20 %	0.248 "	6.3 mm	Polar	330 µF	260 mOhm	6.1 mm	0.24 "	-55 C	105 ░C	AEC-Q200	6.3 VDC	150 mA	300 mA	Automotive	Surface Mount	Radial Can - SMD	0.26 in	6.6 mm	6.6 mm	0.26 in	2000 Hrs
Chemi-Con EMZR100ARA152MJA0G	20 %	0.394 in	10 mm	Polar	1.5 mF	60 mOhm			-55 C	105 ░C	AEC-Q200	10 V	714 mA	1.19 A	Automotive	Surface Mount	Radial Can - SMD	0.406 in	10.3 mm	10.3 mm	0.406 "	2000 Hrs	0.413 "	10.5 mm
Chemi-Con EMZR250ARA821MJA0G	20 %	0.394 in	10 mm	Polar	820 µF	60 mOhm			-55 C	105 ░C	AEC-Q200	25 VDC	714 mA	1.19 A	Automotive	Surface Mount	Radial Can - SMD	0.406 in	10.3 mm	10.3 mm	0.406 "	2000 Hrs	0.413 "	10.5 mm
Chemi-Con EMZR6R3ARA221ME61G	20 %	0.197 in	5 mm	Polar	220 µF	360 mOhm	6.1 mm	0.24 "	-55 C	105 ░C	AEC-Q200	6.3 VDC	120 mA	240 mA	Automotive	Surface Mount	Radial Can - SMD		0.209 in 5.3 mm	0.209 in 5.3 mm		2000 Hrs
