FDQ76 Series

Catalog

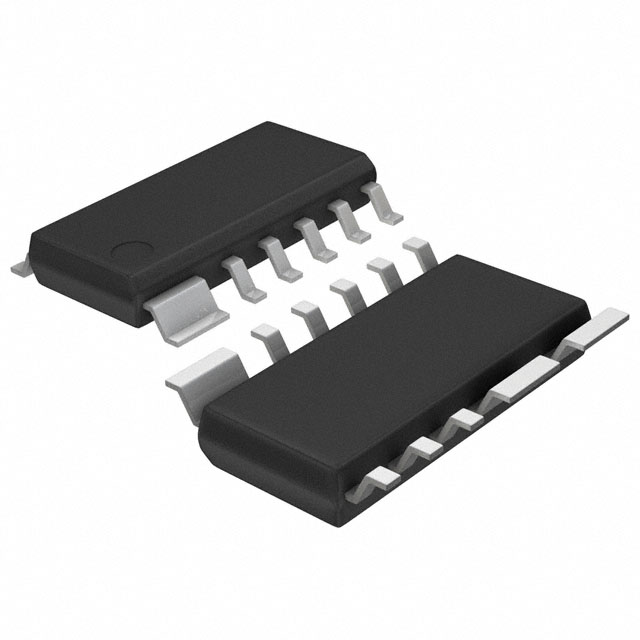

MOSFET 2N-CH 30V 12A/15A 14SO

Part	Vgs(th) (Max) @ Id	Power - Max	FET Feature	Package / Case	Package / Case	Package / Case [custom]	Package / Case [custom]	Supplier Device Package	Rds On (Max) @ Id, Vgs [Max]	Drain to Source Voltage (Vdss)	Technology	Operating Temperature [Min]	Operating Temperature [Max]	Input Capacitance (Ciss) (Max) @ Vds	Gate Charge (Qg) (Max) @ Vgs [Max]	Configuration	Current - Continuous Drain (Id) @ 25°C [Min]	Current - Continuous Drain (Id) @ 25°C [Max]	Mounting Type
ON Semiconductor FDQ7698S	3 V	1.1 W 1.3 W	Logic Level Gate	11 Leads	14-SOIC Fused Leads	3.9 mm	0.154 in	14-SO	7.5 mOhm	30 V	MOSFET (Metal Oxide)	-55 °C	150 °C	1324 pF	17 nC	2 N-Channel (Dual)	12 A	15 A	Surface Mount
