LDD-F302 Series
Manufacturer: Lumex Opto/Components Inc.
Beta
⌘K
DISPLAY 7SEG 0.3" DBL GRN 10DIP
| Part | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Display Type | Color | Current - Test | Package / Case | Package / Case | Voltage - Forward (Vf) (Typ) | Millicandela Rating | Power Dissipation (Max) [Max] | Common Pin | Wavelength - Peak | Number of Characters | Digit/Alpha Size | Digit/Alpha Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

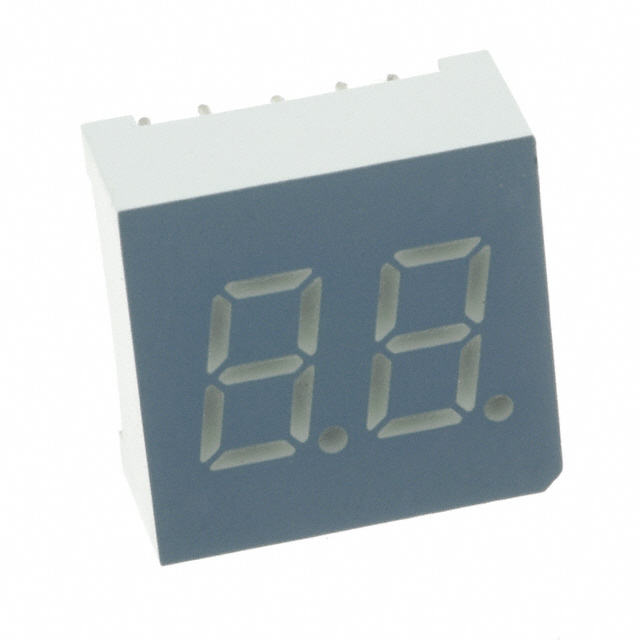

 Lumex Opto/Components Inc. | 15.5 mm | 7.2 mm | 0.591 in | 0.283 " | 15 mm | 0.61 in | 7-Segment | Green | 10 mA | 0.4 in | 10-DIP 9 Leads | 2.2 V | 2.5 mcd | 105 mW | Common Cathode | 565 nm | 2 | 7.62 mm | 0.3 in |

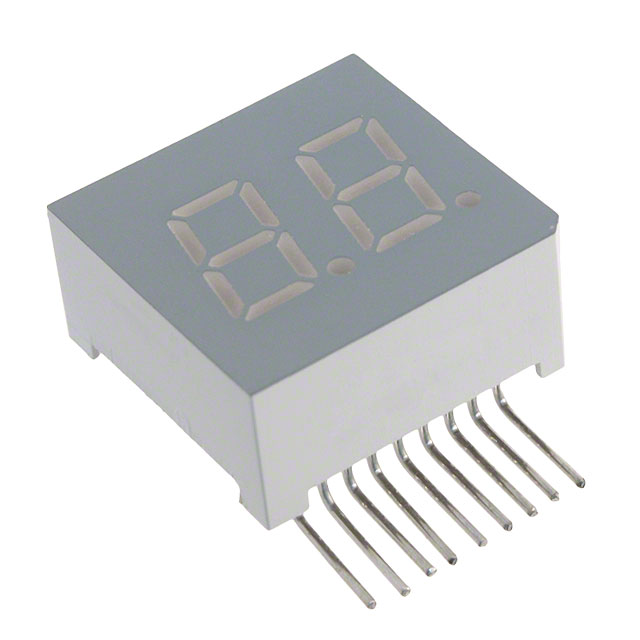

 Lumex Opto/Components Inc. | 15.5 mm | 7.2 mm | 0.591 in | 0.283 " | 15 mm | 0.61 in | 7-Segment | Green | 10 mA | 9-SIP Right Angle | 2.2 V | 2.5 mcd | 105 mW | Common Cathode | 565 nm | 2 | 7.62 mm | 0.3 in |
