MVU10 Series

Catalog

CONN INLINE 10-12 AWG CRIMP

Part	Number of Wire Entries	Termination	Terminal Type	Color	Wire Gauge [Min]	Wire Gauge [Max]	Insulation	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Material - Insulation	Length - Overall [x]	Length - Overall [x]	Contact Finish	Mounting Type	Contact Material	Thickness	Thickness	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]	Width - Outer Edges	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Width - Outer Edges	Number of Wire Entries	Width - Outer Edges [x]
3M Electronic Specialty MVU10PCK	Varies by Wire Size	Crimp	Inline Individual Openings (Parallel)	Yellow	10 AWG	12 AWG	Fully Insulated
3M Electronic Specialty MVU10-10RX		Crimp	Circular	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	26.16 mm	1.03 in	Tin	Free Hanging (In-Line)	Copper ETP	0.04 in	1.02 mm	10 Stud	9.65 mm	0.38 in
3M Electronic Specialty MVU10-38RX-BOTTLE		Crimp	Circular	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	32 mm	1.26 "	Tin	Free Hanging (In-Line)	Copper ETP	0.04 in	1.02 mm	0.375 Stud		0.54 in	13.72 mm
3M Electronic Specialty MVU10-10FLK		Crimp	Snap Spring	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	26.16 mm	1.03 in	Tin	Free Hanging (In-Line)	Copper ETP			10 Stud	8.13 mm	0.32 in		0.55 in	13.97 mm	7.11 mm	0.28 in	Butted Seam
3M Electronic Specialty MVU10-14R/SK		Crimp	Circular	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	32 mm	1.26 "	Tin	Free Hanging (In-Line)	Copper ETP	0.04 in	1.02 mm	0.25 Stud			13.46 mm						0.53 in
3M Electronic Specialty MVU10BCX		Crimp	Butt Splice Individual Openings Inline	Yellow	10 AWG	12 AWG	Fully Insulated																					2

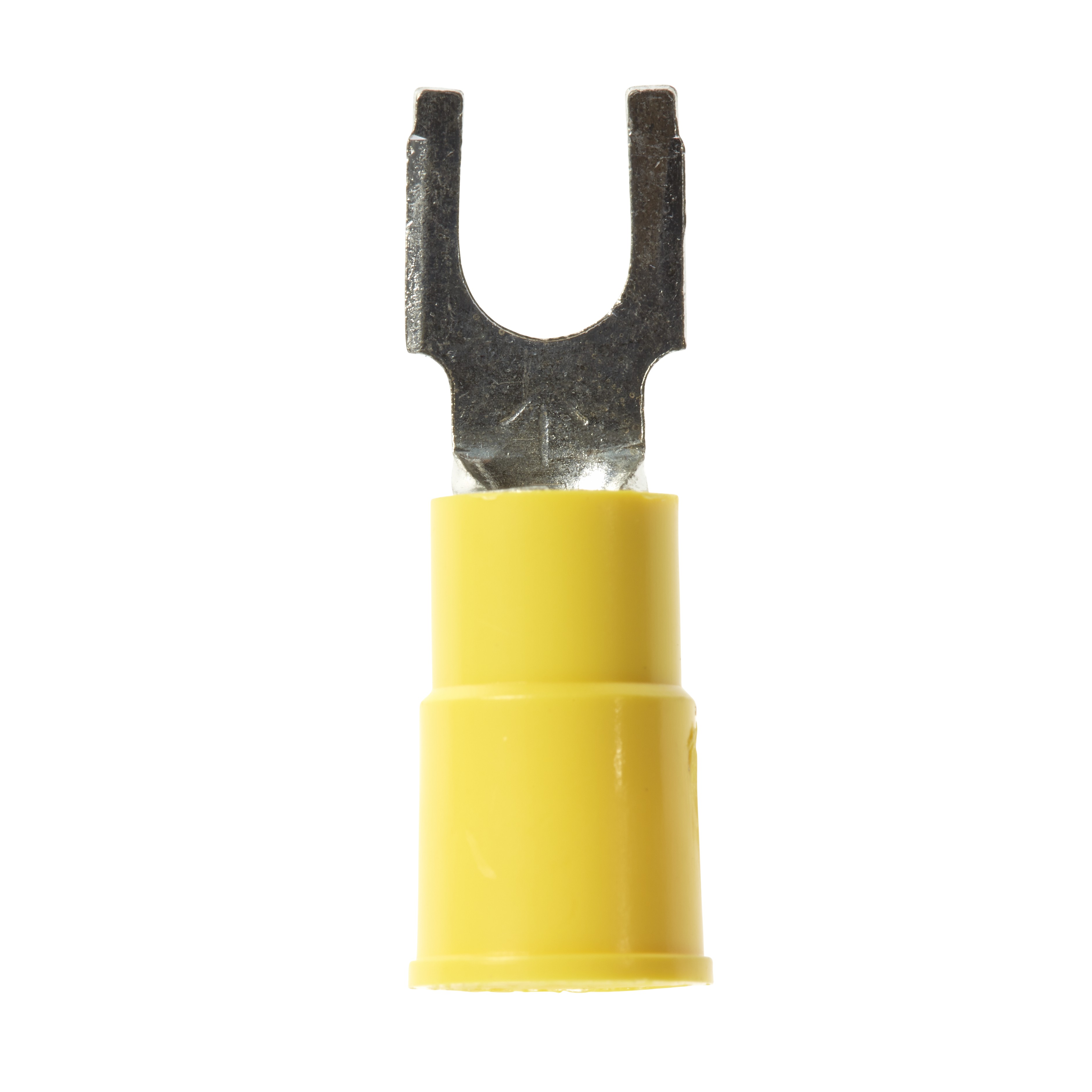

3M Electronic Specialty MVU10-10FBK		Crimp	Standard	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	26.16 mm	1.03 in	Tin	Free Hanging (In-Line)	Copper ETP			10 Stud	8.13 mm	0.32 in		0.55 in	13.97 mm	7.37 mm	0.29 in	Butted Seam
3M Electronic Specialty MVU10BCK		Crimp	Butt Splice Individual Openings Inline	Yellow	10 AWG	12 AWG	Fully Insulated																					2

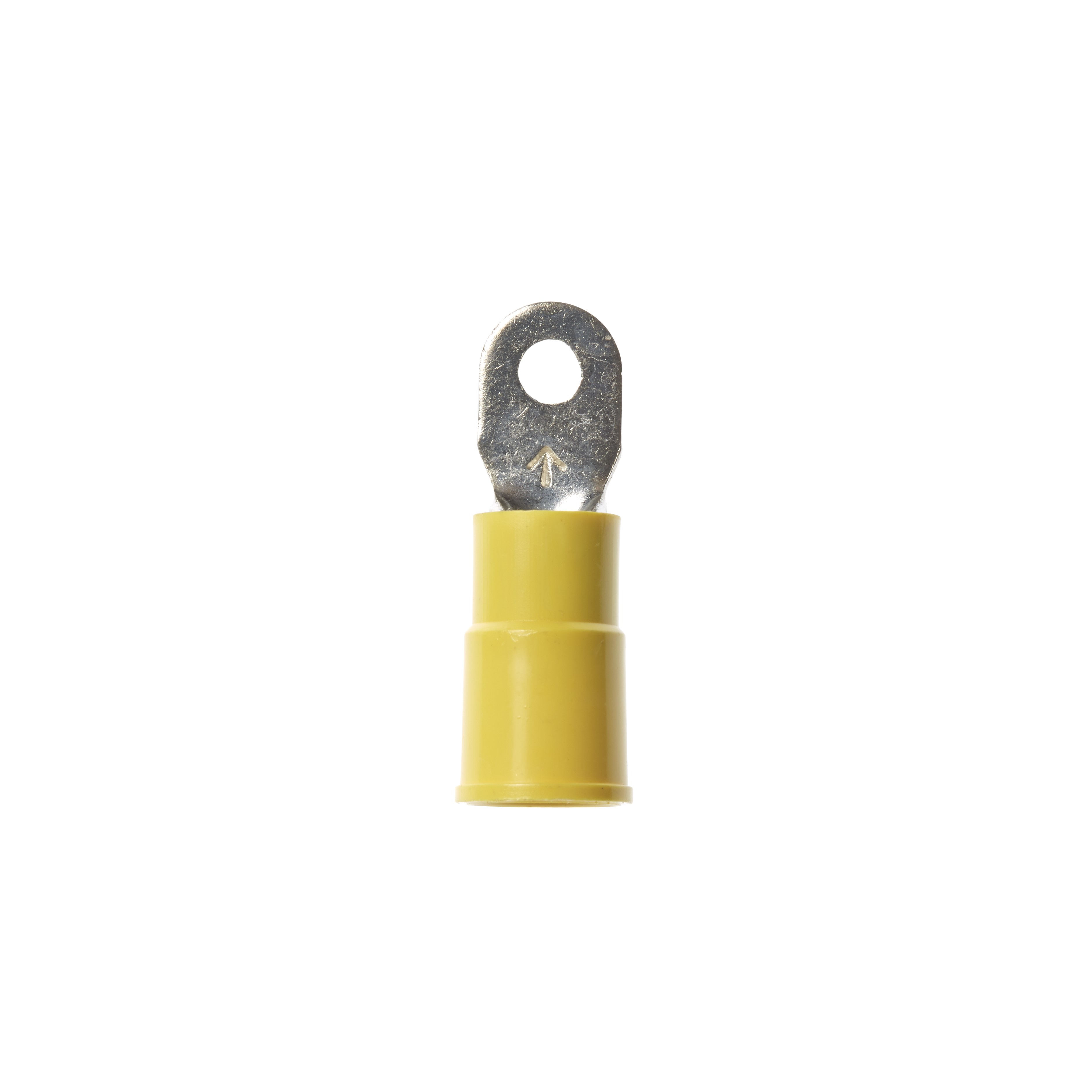

3M Electronic Specialty MVU10-4R/SK		Crimp	Circular	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	24.89 mm	0.98 in	Tin	Free Hanging (In-Line)	Copper ETP	0.04 in	1.02 mm	4 Stud	7.11 mm										0.28 in

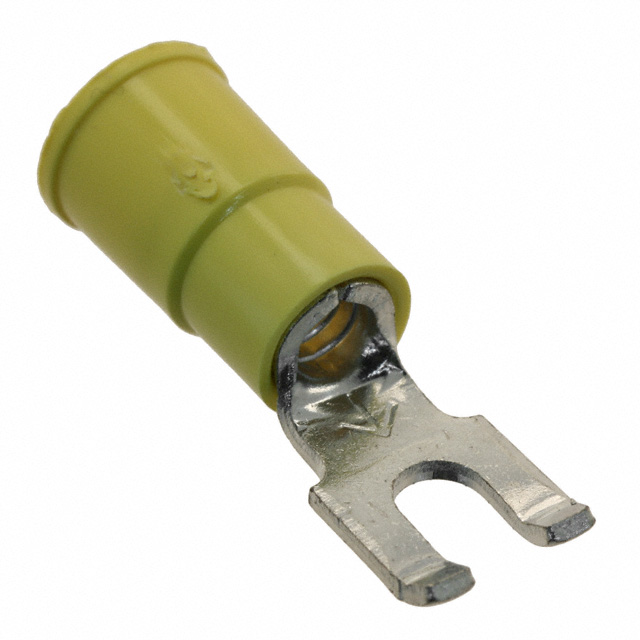

3M Electronic Specialty MVU10-6FFBK		Crimp	Flanged	Yellow	10 AWG	12 AWG	Insulated	6.35 mm	0.25 in	Vinyl	26.16 mm	1.03 in	Tin	Free Hanging (In-Line)	Copper ETP			6 Stud	8.13 mm	0.32 in		0.55 in	13.97 mm	7.37 mm	0.29 in	Butted Seam
