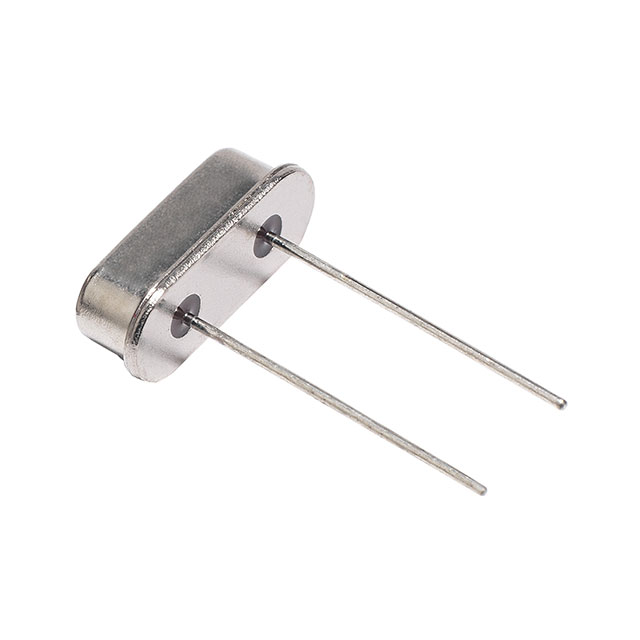

HC49/4H Series

Manufacturer: IQD

Catalog

CRYSTALS 3.579545MHZ 11.05 X 4.7 X 4.1MM

Part	Operating Mode	Load Capacitance	Package / Case	ESR (Equivalent Series Resistance)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency	Frequency Stability	Frequency Tolerance	Mounting Type	Type
IQD LFXTAL003063BULK	Fundamental	20 pF	HC-49/US	300 Ohms	4.1 mm	0.161 in	-20 ░C	70 °C	0.435 "	11.05 mm	0.185 in	4.7 mm	3.579545 MHz	50 ppm	30 ppm	Through Hole	MHz Crystal
IQD LFXTAL003200BULK	Fundamental	30 pF	HC-49/US	40 Ohms	4.1 mm	0.161 in	-20 ░C	70 °C	0.435 "	11.05 mm	0.185 in	4.7 mm	14.31818 MHz	50 ppm	30 ppm	Through Hole	MHz Crystal
IQD LFXTAL003186BULK	Fundamental	20 pF	HC-49/US	40 Ohms	4.1 mm	0.161 in	-10 °C	60 °C	0.435 "	11.05 mm	0.185 in	4.7 mm	20 MHz	50 ppm	30 ppm	Through Hole	MHz Crystal
IQD LFXTAL018496B	Fundamental	18 pF	HC-49/US	40 Ohms	4.1 mm	0.161 in	-20 ░C	70 °C	0.435 "	11.05 mm	0.185 in	4.7 mm	11.0592 MHz	50 ppm	30 ppm	Through Hole	MHz Crystal
IQD LFXTAL024985B	Fundamental	12 pF	HC-49/US	300 Ohms	4.1 mm	0.161 in	-10 °C	60 °C	0.435 "	11.05 mm	0.185 in	4.7 mm	3.2768 MHz	50 ppm	30 ppm	Through Hole	MHz Crystal
