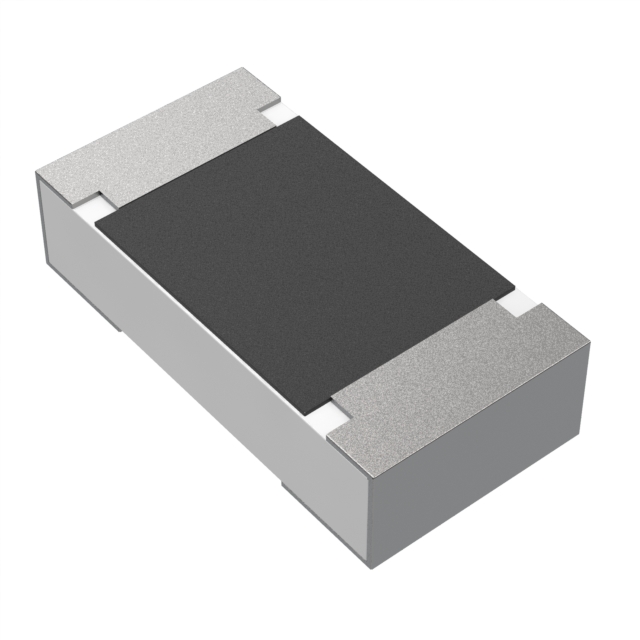

RQ73C1J Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RES 698 OHMS 0.1% 0.15W 0603

Part	Number of Terminations [custom]	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Tolerance	Features	Resistance	Temperature Coefficient	Ratings	Power (Watts)	Composition
TE Connectivity AMP Connectors RQ73C1J698RBTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	698 Ohms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J232RBTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	232 Ohms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J324RBTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	324 Ohms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J64R9BTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	64.9 Ohms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J11K3BTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	11.3 kOhms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J11K8BTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	11.8 kOhms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J1K58BTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	1.58 kOhms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J464RBTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	464 Ohms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J2K74BTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200	2.74 kOhms	10 ppm/°C	AEC-Q200	150 mW	Thin Film
TE Connectivity AMP Connectors RQ73C1J365RBTD	2	1608 Metric	0603	155 C	-55 C	0.6 mm	0.024 in	0.1 %	Anti-Sulfur Automotive AEC-Q200		10 ppm/°C	AEC-Q200	150 mW	Thin Film
