CUS100ME Series

Catalog

SWITCHING POWER SUPPLIES AC-DC, MEDICAL, 115-230VAC, OUTPUT 36V 2.77A, 100W + BASEPLATE

Part	Number of Outputs	Power (Watts)	Efficiency	Voltage - Output 1 [custom]	Current - Output 1	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Type	Mounting Type	Features	Applications	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [z]
TDK Corporation CUS100ME-36/B	1	100 W	94 %	36 V	2.77 A	116 mm	34.2 mm	2.34 in	59.4 mm	4.57 "	1.35 in	Open Frame	Chassis Mount	Baseplate Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C
TDK Corporation CUS100ME-18	1	100 W	94 %		5.55 A	101.6 mm	31.5 mm	2 in	50.8 mm	4 "	1.24 "	Open Frame	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	18 V

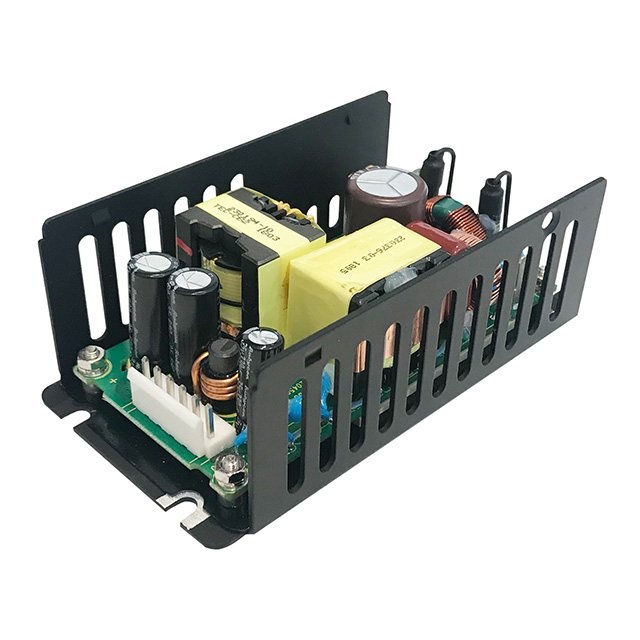

TDK Corporation CUS100ME-18/U	1	100 W	94 %		5.55 A	116 mm		2.52 in		4.57 "	1.57 "	Open Frame	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	18 V	64 mm	39.7 mm

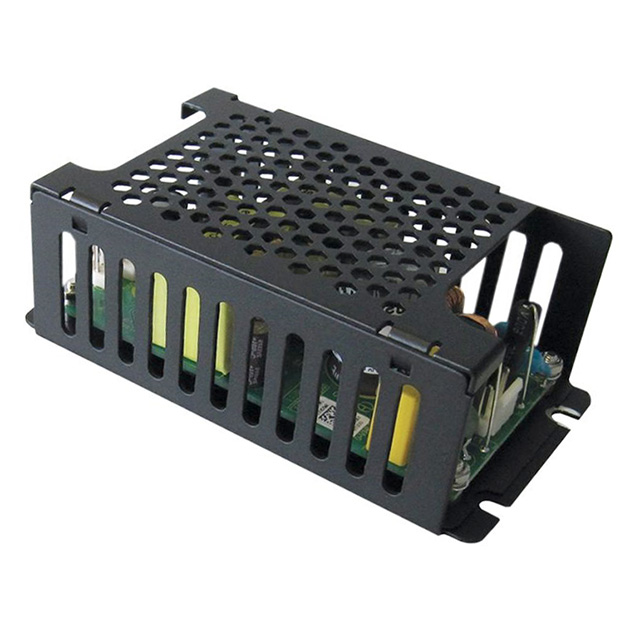

TDK Corporation CUS100ME-12/A	1	100 W	94 %		8.33 A	116 mm	38.5 mm	2.52 in	64 mm	4.57 "	1.52 in	Enclosed	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	12 V
TDK Corporation CUS100ME-28	1	100 W	94 %		3.57 A	101.6 mm	31.5 mm	2 in	50.8 mm	4 "	1.24 "	Open Frame	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	28 V
TDK Corporation CUS100ME-12/U	1	100 W	94 %		8.33 A	116 mm		2.52 in		4.57 "	1.57 "	Open Frame	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	12 V	64 mm	39.7 mm
TDK Corporation CUS100ME-15/A	1	100 W	94 %		6.66 A	116 mm	38.5 mm	2.52 in	64 mm	4.57 "	1.52 in	Enclosed	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	15 V
TDK Corporation CUS100ME-24/B	1	100 W	94 %		4.16 A	116 mm	34.2 mm	2.34 in	59.4 mm	4.57 "	1.35 in	Open Frame	Chassis Mount	Baseplate Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	24 V
TDK Corporation CUS100ME-48/A	1	100 W	94 %		2.08 A	116 mm	38.5 mm	2.52 in	64 mm	4.57 "	1.52 in	Enclosed	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	48 V
TDK Corporation CUS100ME-18/A	1	100 W	94 %		5.55 A	116 mm	38.5 mm	2.52 in	64 mm	4.57 "	1.52 in	Enclosed	Chassis Mount	Universal Input	Household Appliances ITE (Commercial) Medical	4000 V	85 °C	-20 °C	18 V
