EGG.1T Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 10P SOLDER CUP

Part	Orientation [custom]	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Feature	Contact Finish - Mating	Current Rating (Amps)	Shell Finish	Shell Material	Connector Type	Shielding	Contact Material	Ingress Protection	Material Flammability Rating	Mounting Type	Shell Size - Insert	Primary Material	Color	Insert Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shell Size - Insert [custom]	Shell Size - Insert [custom]
LEMO EGG.1T.310.CLL	G	Push-Pull	1.5 Ám	59 Áin	Bulkhead - Rear Side Nut	Gold	2.5 A	Chrome	Brass	Receptacle Female Sockets	Shielded	Bronze	IP66 IP68	UL94 V-0	Panel Mount	310	Metal	Silver	Polyetheretherketone (PEEK)	10	200 °C	-55 C
LEMO EGG.1T.316.CLL	G	Push-Pull	1.5 Ám	59 Áin	Bulkhead - Rear Side Nut	Gold	1.5 A	Chrome	Brass	Receptacle Female Sockets	Shielded	Bronze	IP66 IP68	UL94 V-0	Panel Mount		Metal	Silver	Polyetheretherketone (PEEK)	16	200 °C	-55 C	316

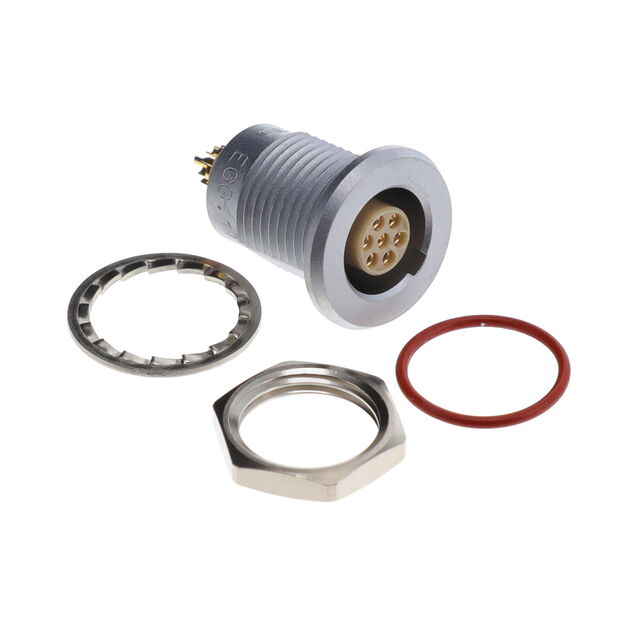

LEMO EGG.1T.307.CLL	G	Push-Pull			Bulkhead - Rear Side Nut	Gold	7 A	Chrome	Brass	Receptacle Female Sockets	Shielded	Bronze	IP68 - Dust Tight Waterproof	UL94 V-0	Panel Mount		Metal	Silver	Polyetheretherketone (PEEK)	7	250 °C	-55 C		307
