LBW7P Series
Manufacturer: IDEC
Beta
⌘K

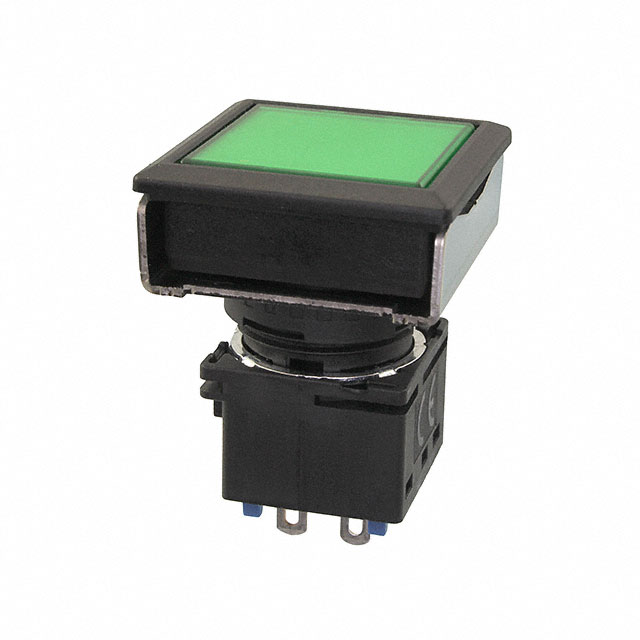

LED PANEL MOUNT INDICATOR, GREEN, 24 V, 16 MA, IP65
| Part | Lamp Color | Ingress Protection | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [x] | Panel Cutout Shape | Voltage | Lens Size | Type | Lens Style | Ratings | Termination Style | Accessory Type | For Use With/Related Products |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEC | Green | IP65 | 0.89 " | 22.5 mm | 22.5 mm | 0.89 in | Square | 24 V | 26 mm | LED | Square with Flat Top | AC/DC | PC Pin | ||
 IDEC | Red | IP65 | 0.89 " | 22.5 mm | 22.5 mm | 0.89 in | Square | 24 V | 26 mm | LED | Square with Flat Top | AC/DC | PC Pin | ||
 IDEC | White | IP65 | 0.89 " | 22.5 mm | 22.5 mm | 0.89 in | Square | 24 V | 26 mm | LED | Square with Flat Top | AC/DC | PC Pin | ||
 IDEC | LED - Holder | LBW Series | |||||||||||||
IDEC | White | IP65 | 0.89 " | 22.5 mm | 22.5 mm | 0.89 in | Square | 24 V | 26 mm | LED | Square with Flat Top | AC/DC | Solder Lug | ||
IDEC | Yellow | IP65 | 0.89 " | 22.5 mm | 22.5 mm | 0.89 in | Square | 24 V | 26 mm | LED | Square with Flat Top | AC/DC | PC Pin |
