PEN.0M Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Shell Size - Insert	Color	Shell Material	Contact Finish - Mating	Number of Positions	Ingress Protection	Mounting Feature	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Orientation	Insert Material	Shielding	Mounting Type	Contact Material	Applications	Current Rating (Amps)	Cable Opening	Cable Opening	Fastening Type	Shell Finish	Primary Material

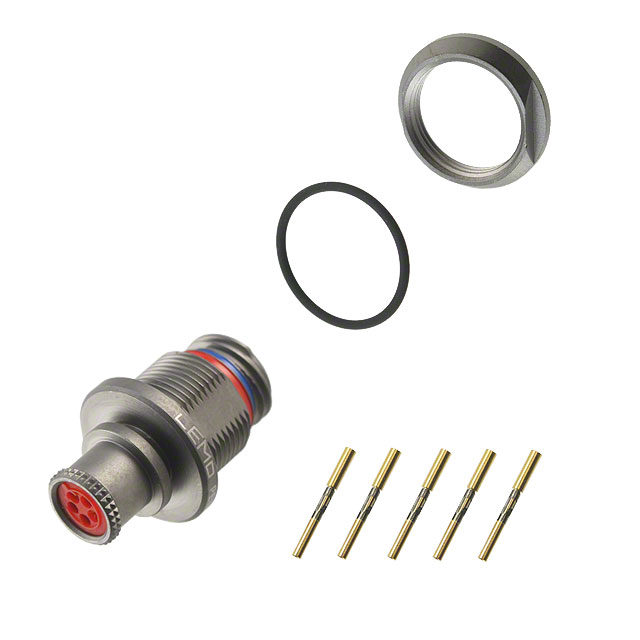

LEMO PEN.0M.305.XLMT	305	Gray	Aluminum Alloy	Gold	5	IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Crimp	200 °C	-55 C	Receptacle Female Sockets	N (Normal)	Polyetheretherketone (PEEK)	Shielded	Panel Mount	Bronze	Aerospace Automotive Aviation Military	6.5 A	8 mm	0.315 in	Threaded	Nickel	Metal
LEMO PEN.0M.302.XLMT	302	Gray	Aluminum Alloy	Gold	2	IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Crimp	200 °C	-55 C	Receptacle Female Sockets	N (Normal)	Polyetheretherketone (PEEK)	Shielded	Panel Mount	Bronze	Aerospace Automotive Aviation Military	10 A	8 mm	0.315 in	Threaded	Nickel	Metal

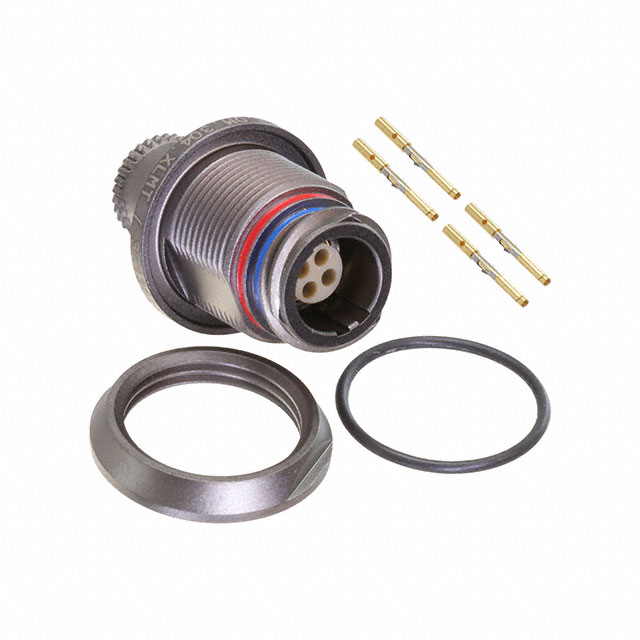

LEMO PEN.0M.304.XLMT	304	Gray	Aluminum Alloy	Gold	4	IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Crimp	200 °C	-55 C	Receptacle Female Sockets	N (Normal)	Polyetheretherketone (PEEK)	Shielded	Panel Mount	Bronze	Aerospace Automotive Aviation Military	7 A	8 mm	0.315 in	Threaded	Nickel	Metal

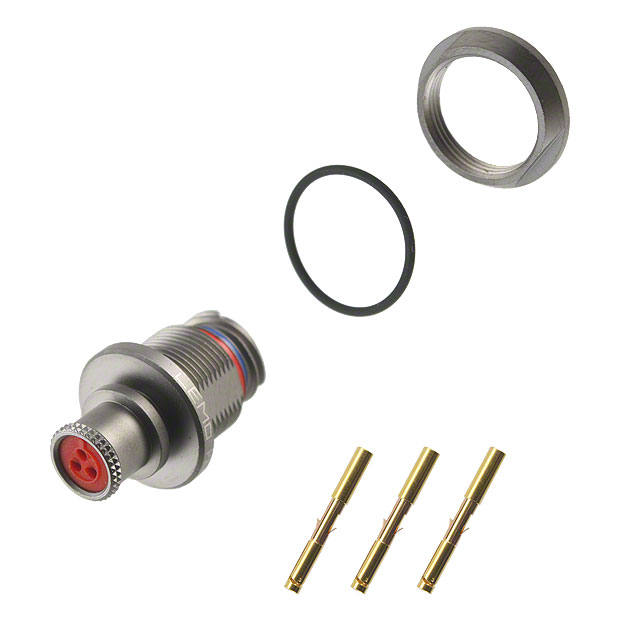

LEMO PEN.0M.303.XLMT	303	Gray	Aluminum Alloy	Gold		IP68 - Dust Tight Waterproof	Bulkhead - Front Side Nut	1.5 Ám	59 Áin	Crimp	200 °C	-55 C	Receptacle Female Sockets	N (Normal)	Polyetheretherketone (PEEK)	Shielded	Panel Mount	Bronze	Aerospace Automotive Aviation Military	8 A	8 mm	0.315 in	Threaded	Nickel	Metal
