1600 Series
Manufacturer: Keystone Electronics
Beta
⌘K

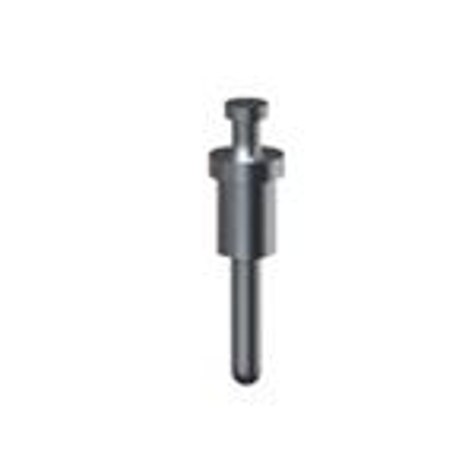

CIRCUIT BOARD HARDWARE - PCB DBL END TURRET .084 "L" BRASS
| Part | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Length - Below Flange [x] | Length - Below Flange [x] | Contact Material | Terminal Type | Length - Overall [x] | Length - Overall [x] | Mounting Hole Diameter | Mounting Hole Diameter | Number of Turrets | Termination | Insulation | Board Thickness | Board Thickness | Contact Finish | Diameter - Turret Head [diameter] | Diameter - Turret Head [diameter] | Length - Above Board [x] | Length - Above Board [x] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Diameter - Outside [diameter] | Threaded/Unthreaded | Material | Type | Screw, Thread Size | Plating | Gender | Between Board Height | Between Board Height | Between Board Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keystone Electronics | Through Hole | 0.078 " | 1.98 mm | 0.224 " | 5.69 mm | Brass | Double End Pin | 0.3 " | 7.62 mm | 0.064 " | 1.63 mm | Single | Staking Flare | Non-Insulated | 1.57 mm | 0.062 " | Tin | 0.045 in | 1.14 mm | 1.93 mm | 0.076 " | ||||||||||||
 Keystone Electronics | 0.734 in | 18.64 mm | 6.35 mm | 0.25 " | 0.25 " | Brass | Round Standoff | #6-32 | Nickel | Female Swage | 15.88 mm | 0.625 in | 5 8 |
