411SM Series

Catalog

SWITCH SNAP ACTION SPDT 4A 250V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination Style	Differential Travel	Differential Travel	Circuit	Current Rating (Amps)	Voltage Rating - DC	Voltage Rating - AC	Operating Position	Operating Position	Actuator Type	Release Force	Mechanical Life	Operating Force	Pretravel	Pretravel	Switch Function	Mounting Type	Overtravel [custom]	Overtravel [custom]	Termination Style	Ingress Protection
Honeywell Sensing and Productivity Solutions 411SM701-H4	-55 C	125 °C	Solder Quick Connect - 0.110" (2.8mm)	0.05 mm	0.002 in	SPDT	4 A 5 A	30 V	250 V	0.33 in	8.4 mm	Round (Pin Plunger)	14 gf	10000000 Cycles	100 gf	0.02 in	0.5 mm	On-Mom	Chassis Mount	0.005 "	0.13 mm
Honeywell Sensing and Productivity Solutions 411SM1-H58	-55 C	125 °C	Quick Connect	0.1 mm	0.004 in	SPDT	5 A	30 V	250 V	0.33 in	8.4 mm	Round (Pin Plunger)	28 gf	10000000 Cycles	213 gf	0.02 in	0.5 mm	On-Mom	Chassis Mount	0.005 "	0.13 mm	0.058 in	Splash Proof
Honeywell Sensing and Productivity Solutions 411SM1	-55 C	125 °C	Solder Lug	0.1 mm	0.004 in	SPDT	5 A	30 V	250 V	0.33 in	8.4 mm	Round (Pin Plunger)	28 gf	10000000 Cycles	213 gf	0.02 in	0.5 mm	On-Mom	Chassis Mount	0.005 "	0.13 mm		Splash Proof

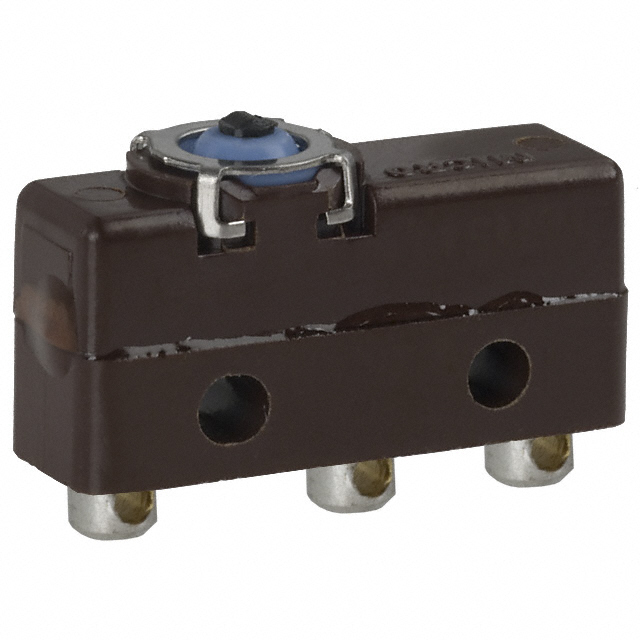

Honeywell Sensing and Productivity Solutions 411SM1-T	-55 C	125 °C	Solder Turret	0.1 mm	0.004 in	SPDT	5 A	30 V	250 V	0.33 in	8.4 mm	Round (Pin Plunger)	28 gf	10000000 Cycles	213 gf	0.02 in	0.5 mm	On-Mom	Chassis Mount	0.005 "	0.13 mm		Splash Proof
