XDMDK57 Series
Manufacturer: SunLED
Beta
⌘K

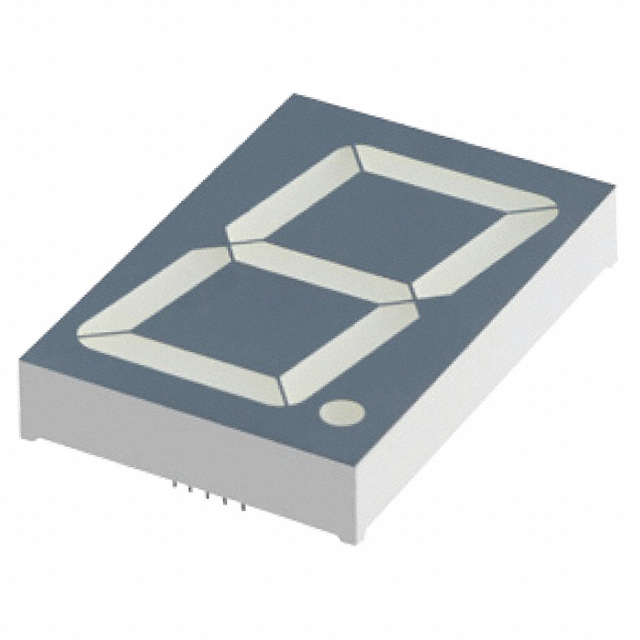

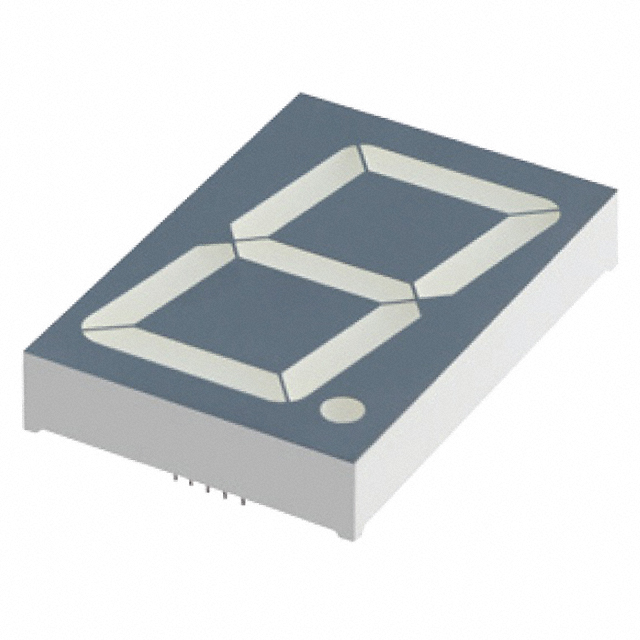

DISPLAY 7-SEG 2.3" SGL RED 10DIP
| Part | Package / Case | Wavelength - Peak | Power Dissipation (Max) | Color | Millicandela Rating | Number of Characters | Current - Test | Common Pin | Digit/Alpha Size | Digit/Alpha Size | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Display Type | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SunLED | 10-DIP (2.367" 60.10mm) | 645 nm | 150 mW | Red | 120 mcd | 1 | 10 mA | Common Anode | 58.42 mm | 2.3 in | 12 mm | 70 mm | 0.472 " | 2.756 " | 1.89 in | 48 mm | 7-Segment | 7.4 V |
 SunLED | 10-DIP (2.367" 60.10mm) | 645 nm | 150 mW | Red | 120 mcd | 1 | 10 mA | Common Cathode | 58.42 mm | 2.3 in | 12 mm | 70 mm | 0.472 " | 2.756 " | 1.89 in | 48 mm | 7-Segment | 7.4 V |
