3074F Series
Manufacturer: Belden Inc.
Beta
⌘K

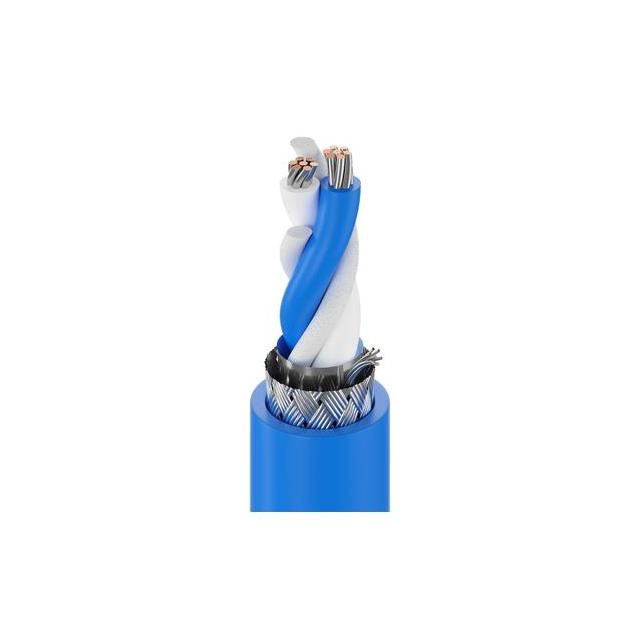

CABLE 2CON 18AWG BLUE SHLD
| Part | Shield Coverage | Shield Material | Features | Jacket (Insulation) Material | Cable Type | Voltage | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Strand [custom] | Conductor Strand [custom] | Shield Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Conductor Material | Jacket Color | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Length | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 600 V | -40 C | 75 ░C | 26 AWG | 7 | Braid Foil | 0.053 " | 1.346 mm | 18 AWG | Copper Tinned | Blue | Polyolefin | PO | 11.68 mm | 0.46 in | 2 | |||
Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 600 V | -40 C | 75 ░C | 26 AWG | 7 | Braid Foil | 0.053 " | 1.346 mm | 18 AWG | Copper Tinned | Blue | Polyolefin | PO | 11.68 mm | 0.46 in | 2 | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity |
Belden Inc. | 55 % 100 % | Aluminum Copper Tinned | Drain Wire | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 600 V | -40 C | 75 ░C | 26 AWG | 7 | Braid Foil | 0.053 " | 1.346 mm | 18 AWG | Copper Tinned | Blue | Polyolefin | PO | 11.68 mm | 0.46 in | 2 | 152.4 m | 500 ft |
