0444-1 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Socket Depth	Socket Depth	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish Thickness	Contact Finish Thickness	Tail Type	Length - Overall [x]	Length - Overall [x]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Termination	Contact Finish
Mill-Max Manufacturing Corp. 0444-1-17-80-30-84-02-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	4.12 mm	0.162 in	1.42 mm	0.056 "	2.54 µm	100 µin	Wire Wrap	11.68 mm	0.46 in	0.072 "	1.83 mm	0.025 in	0.64 mm	Knurled Press-Fit	Tin
Mill-Max Manufacturing Corp. 0444-1-17-01-30-27-02-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	4.12 mm	0.162 in	1.42 mm	0.056 "	0.76 Ám	30 Áin	Wire Wrap	11.68 mm	0.46 in	0.072 "	1.83 mm	0.025 in	0.64 mm	Knurled Press-Fit	Gold
Mill-Max Manufacturing Corp. 0444-1-17-15-30-14-02-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	4.12 mm	0.162 in	1.42 mm	0.056 "	0.25 Ám	10 Áin	Wire Wrap	11.68 mm	0.46 in	0.072 "	1.83 mm	0.025 in	0.64 mm	Knurled Press-Fit	Gold

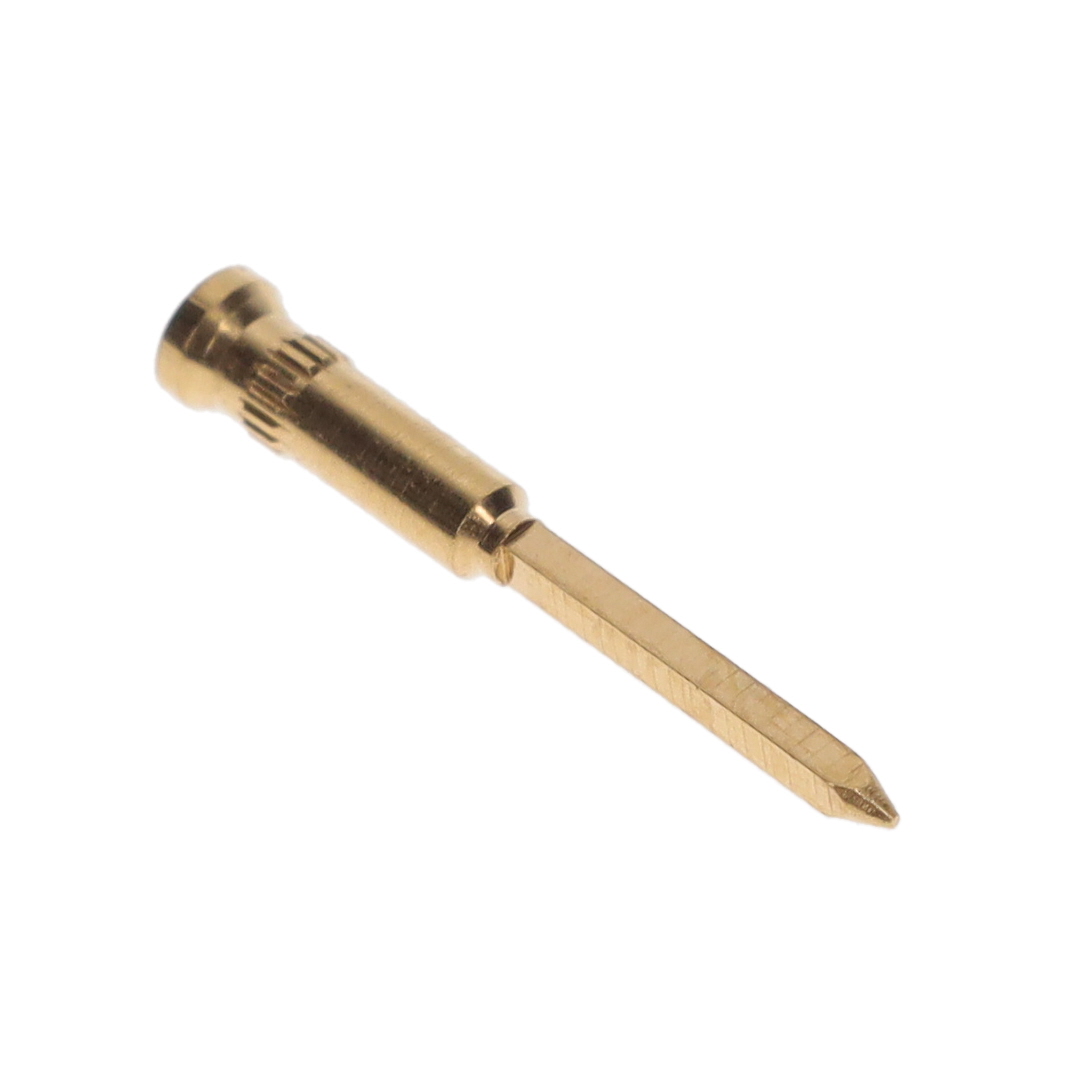

Mill-Max Manufacturing Corp. 0444-1-17-15-30-27-02-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	4.12 mm	0.162 in	1.42 mm	0.056 "	0.76 Ám	30 Áin	Wire Wrap	11.68 mm	0.46 in	0.072 "	1.83 mm	0.025 in	0.64 mm	Knurled Press-Fit	Gold
Mill-Max Manufacturing Corp. 0444-1-17-80-30-27-02-0	-55 C	125 °C	Beryllium Copper	0.64 mm	0.015 "	0.025 in	0.38 mm	4.12 mm	0.162 in	1.42 mm	0.056 "	0.76 Ám	30 Áin	Wire Wrap	11.68 mm	0.46 in	0.072 "	1.83 mm	0.025 in	0.64 mm	Knurled Press-Fit	Gold
