CX06M Series

Catalog

CONFIG POWER CHASSIS 600W 4 SLOT

Part	Voltage - Input (AC) Minimum	Voltage - Input (AC) Maximum	Input Connector	Efficiency	Approval Agency	Cooling Type	Height	Power (Watts)	Feature Current	Features	Auxilary Output Current	Auxilary Output Voltage	Current - Leakage	Type	Size / Dimension Length	Size / Dimension Width	Voltage - Isolation	Voltage - Input (DC) Maximum	Voltage - Input (DC) Minimum	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions
EXCELSYS / Advanced Energy CX06M-0000-N4B	85 VAC	264 V	Screw Terminal	94 %	CE	Convection	1.5 in	600 W	4.7 A	4.7A Auxilary Output 5V Auxilary Output	4.7 A	5 V	150 µA	Medical	8.5 in	114.3 mm	4000 Vpk	300 VDC	120 V	85 °C	-40 °C	4

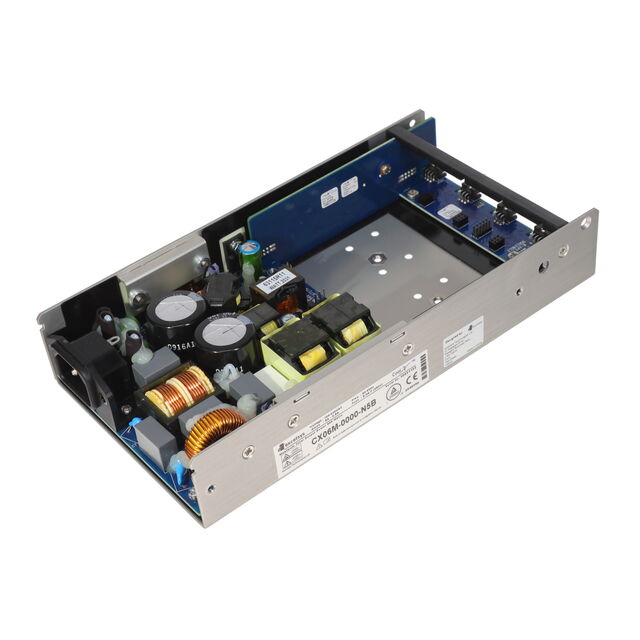

EXCELSYS / Advanced Energy CX06M-0000-N5B	85 VAC	264 V	IEC 320-C14	94 %	CE	Convection	1.5 in	600 W	4.7 A	4.7A Auxilary Output 5V Auxilary Output	4.7 A	5 V	150 µA	Medical	8.5 in	114.3 mm	4000 Vpk	300 VDC	120 V	85 °C	-40 °C	4
EXCELSYS / Advanced Energy CX06M-0000-N5A	85 VAC	264 V	IEC 320-C14	94 %	CE	Convection	1.5 in	600 W	1.96 A	1.96A Auxilary Output 12V Auxilary Output			150 µA	Medical	8.5 in	114.3 mm	4000 Vpk	300 VDC	120 V	85 °C	-40 °C	4

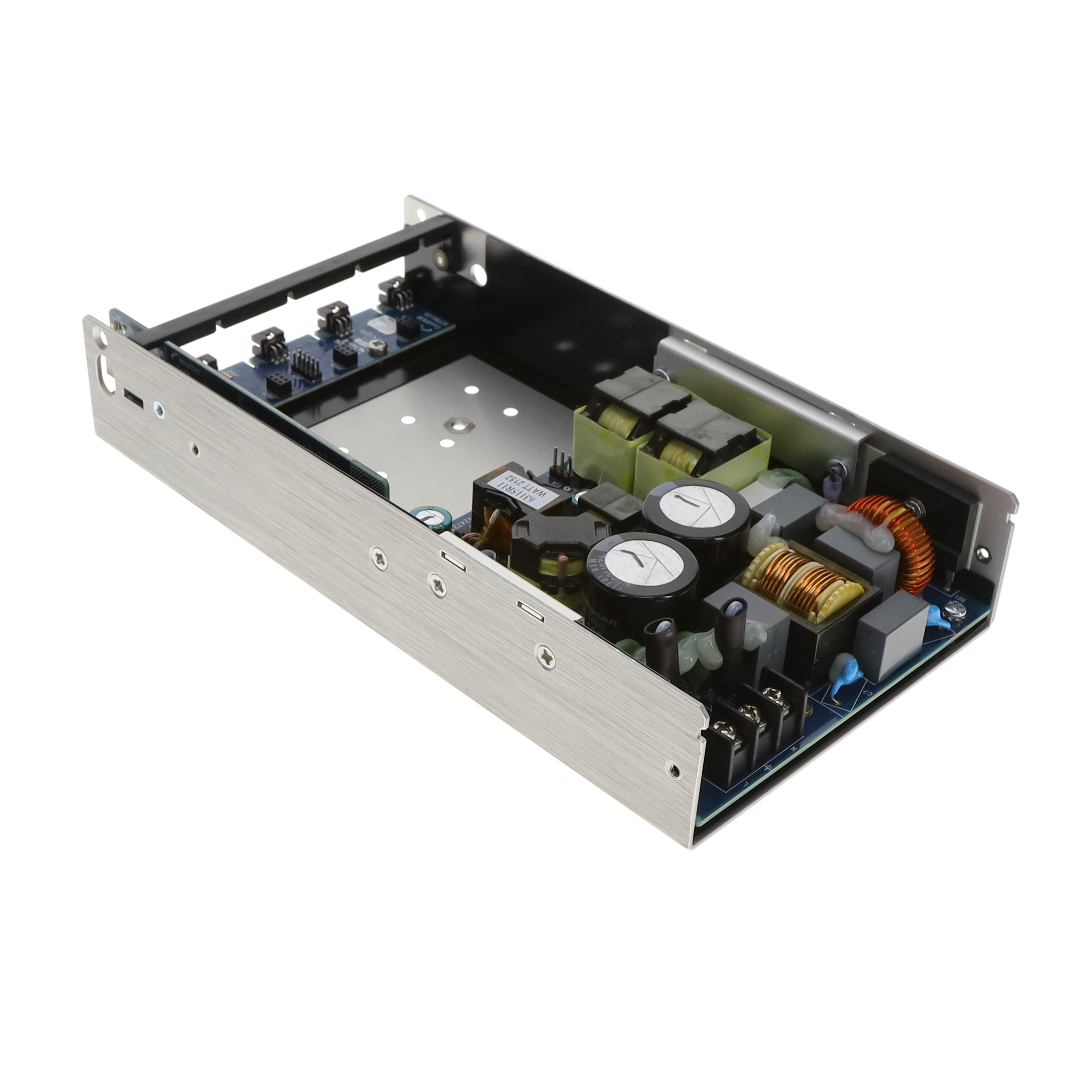

EXCELSYS / Advanced Energy CX06M-0000-N4A	85 VAC	264 V	Screw Terminal	94 %	CE	Convection	1.5 in	600 W	1.96 A	1.96A Auxilary Output 12V Auxilary Output			150 µA	Medical	8.5 in	114.3 mm	4000 Vpk	300 VDC	120 V	85 °C	-40 °C	4
