PTN36502 Series
Manufacturer: NXP USA Inc.
Beta
⌘K
IC REDRIVER USB 3.1 & DP 1.2 QFN
| Part | Type | Capacitance - Input | Operating Temperature (Max) | Operating Temperature (Min) | Package / Case | Mounting Type | Delay Time | Input | Applications | Voltage - Supply (Maximum) | Voltage - Supply (Minimum) | Signal Conditioning | Data Rate (Max) | Current - Supply | Output | Package Name | Package Width | Package Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

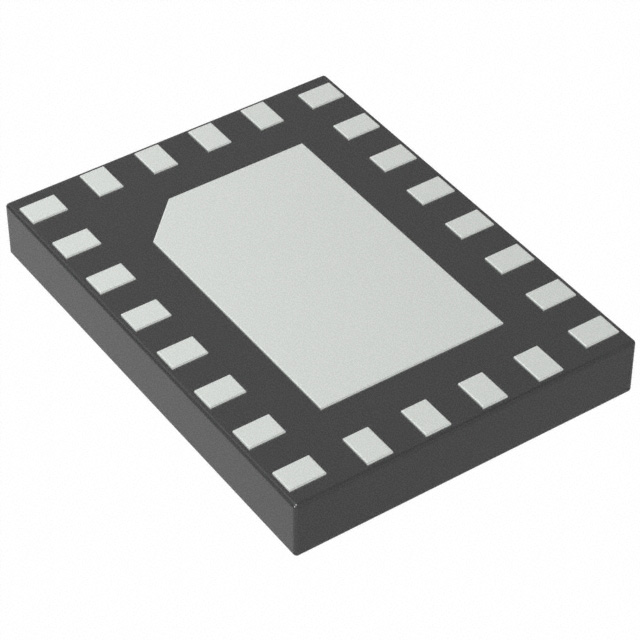

 NXP USA Inc. | Buffer ReDriver | 10 pF | 85 °C | -40 °C | 24-XFQFN Exposed Pad | Surface Mount | 140 ps | Differential | USB Type C | 1.9 V | 1.7 V | Input Equalization Output De-Emphasis | 5.4 Gbps | 225 mA | Differential | 24-HX2QFN | 3.2 mm | 2.4 mm |
NXP USA Inc. | Buffer ReDriver | 10 pF | 85 °C | -40 °C | 24-XFQFN Exposed Pad | 174 ps | Differential | USB Type C | 1.9 V | 1.7 V | Input Equalization Output De-Emphasis | 5.4 Gbps | 225 mA | Differential | 24-HX2QFN | 3.2 mm | 2.4 mm |
