BAV Series
Manufacturer: Diotec Semiconductor
Beta
⌘K
SMALL SIGNAL SWITCHING DIODES SMALL SIGNAL DIODE, SOT-23, 100V, 0.21A, 150C
| Part | Package / Case | Reverse Recovery Time (trr) | Diode Configuration | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Mounting Type | Current - Reverse Leakage @ Vr | Voltage - Forward (Vf) (Max) @ If | Speed | Current - Average Rectified (Io) (per Diode) | Technology | Voltage - DC Reverse (Vr) (Max) [Max] | Supplier Device Package | Operating Temperature - Junction | Capacitance @ Vr, F | Speed | Current - Average Rectified (Io) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Diotec Semiconductor | SC-59 SOT-23-3 TO-236-3 | 4 ns | 1 Pair Common Cathode | -55 °C | 150 °C | Surface Mount | 2.5 µA | 1.25 V | 200 mA 500 ns | 215 mA | Standard | 75 V | SOT-23-3 (TO-236) | ||||

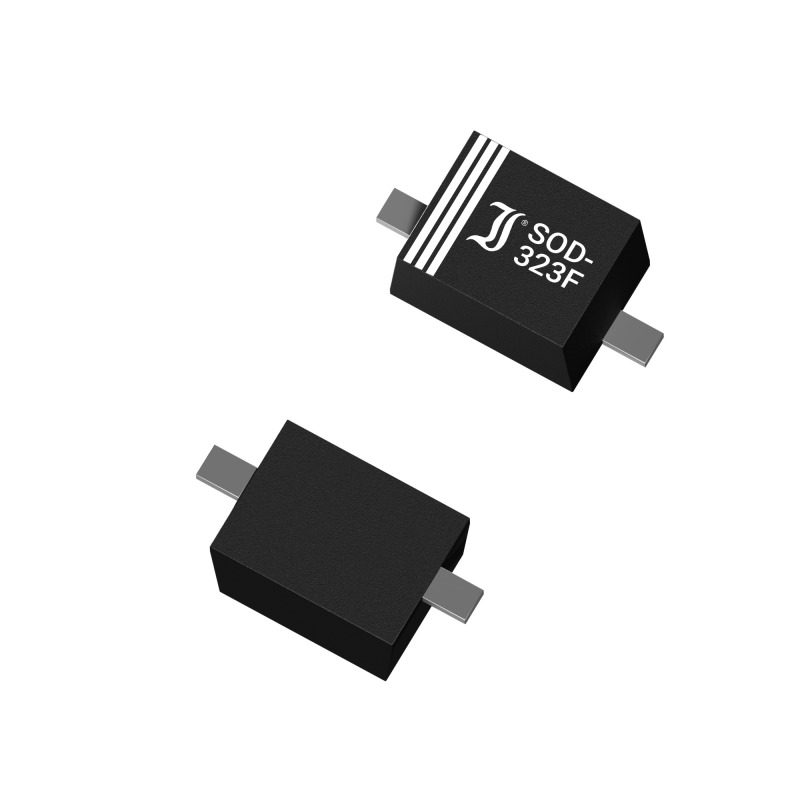

 Diotec Semiconductor | SC-90 SOD-323F | 50 ns | Surface Mount | 100 nA | 1.25 V | 200 mA | Standard | 200 V | SOD-323 | 150 ¯C | 5 pF | Any Speed | 200 mA |
