AAA5FW Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

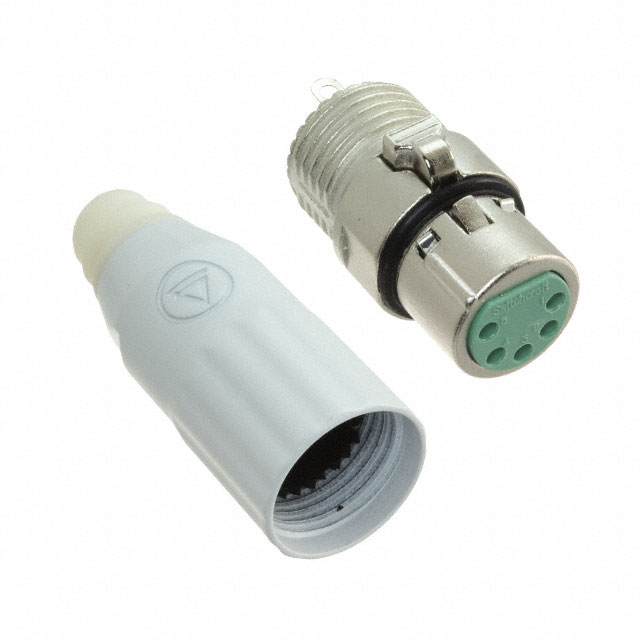

AAA SERIES 5 PIN XLR FEMALE CABLE MOUNT, SILVER PINS, WHITE METAL
| Part | Current Rating (Amps) | Color | Shell Size - Insert | Orientation | Features | Connector Type | Shell Material | Shell Finish | Insert Material | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Primary Material | Number of Positions | Mounting Type | Backshell Material, Plating | Contact Material | Contact Finish - Mating | Applications | Voltage Rating | Fastening Type | Shielding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | 7.5 A | White | XLR | Keyed | Backshell Cable Clamp Ground Strain Relief | Plug Female Sockets | Zinc Alloy | Nickel | Thermoplastic | 2.54 mm | 5.59 mm | 0.22 in | 0.1 " | Metal | 5 | Free Hanging (In-Line) | Nickel Zinc Alloy | Copper Alloy | Silver | Audio Industrial Instrumentation Medical | 125 VAC | Latch Lock | Shielded |
