ALCOSWITCH SBP Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH: DIP-SWITCH; POLES NUMBER: 8; OFF-ON; 0.025A/50VDC; POS: 2
| Part | Washable | Actuator Level | Mounting Type | Operating Temperature [Min] | Operating Temperature [Max] | Actuator Type | Contact Finish | Voltage Rating | Current Rating (Amps) | Pitch | Pitch | Circuit | Contact Material | Number of Positions | Termination Style | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

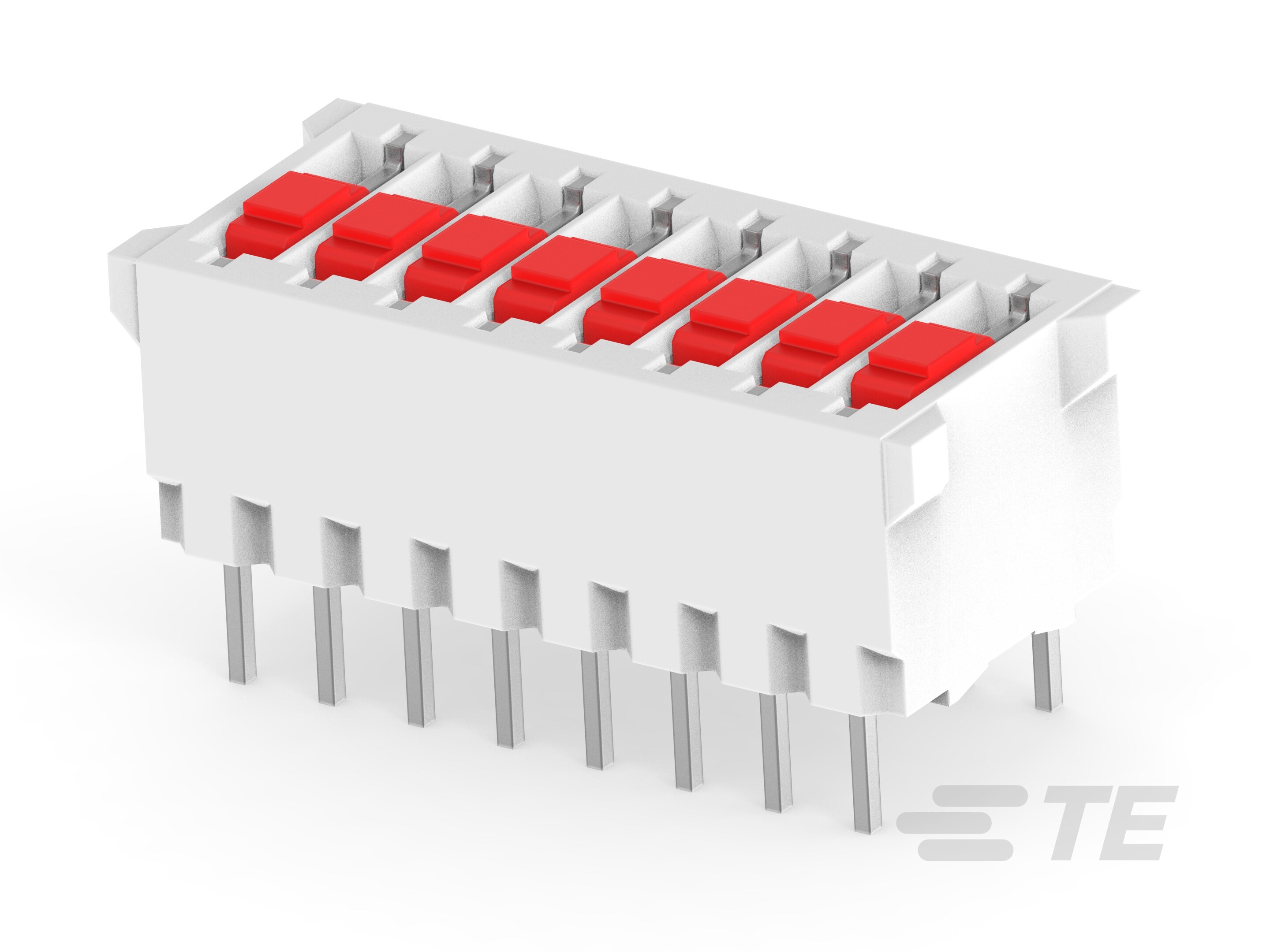

 TE Connectivity AMP Connectors | Raised | Through Hole | -25 °C | 70 °C | Slide (Standard) | Tin | 50 V | 25 mA | 2.54 mm | 0.1 " | SPST | Phosphor Bronze | 8 | PC Pin | |||

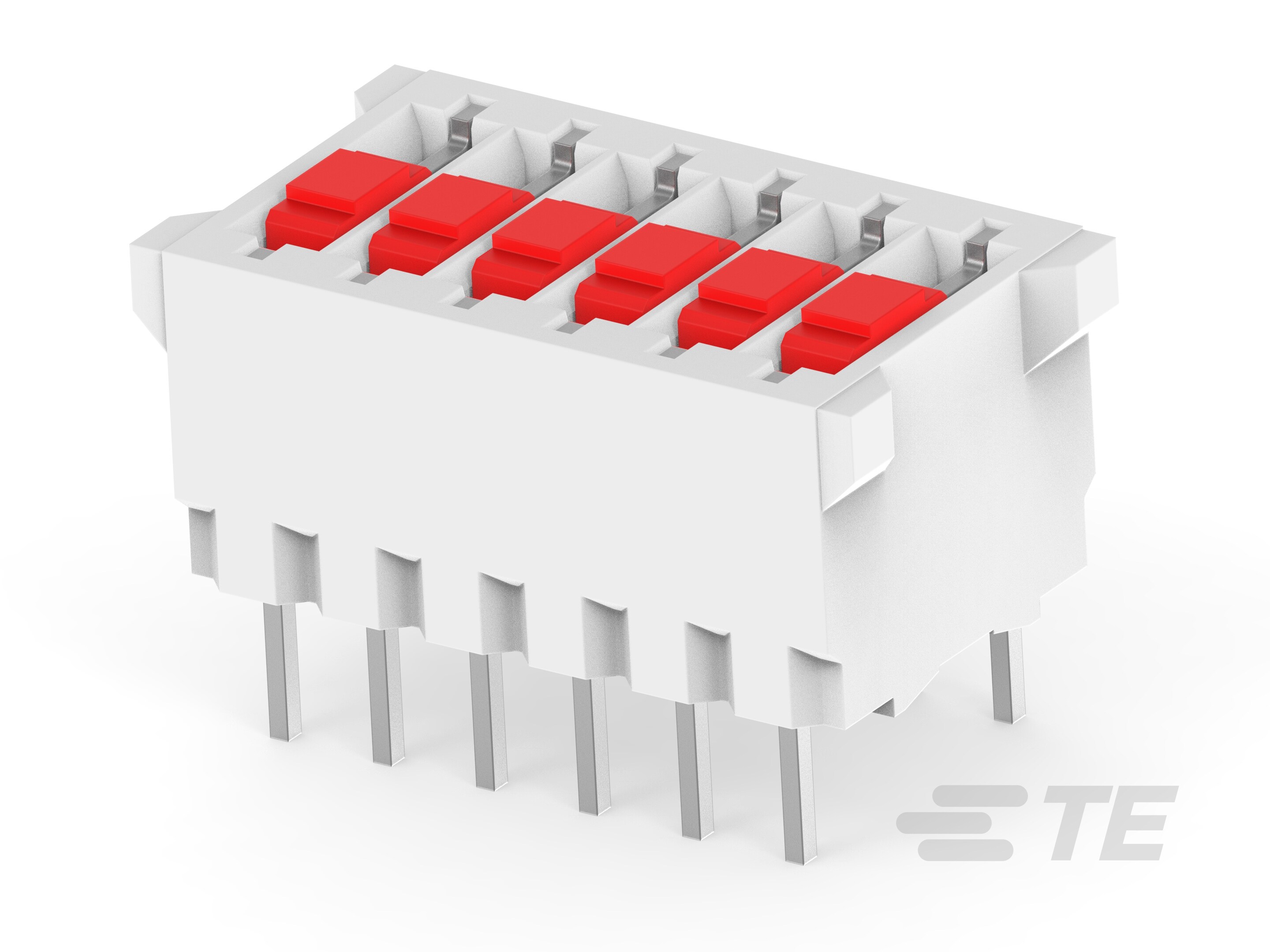

 TE Connectivity AMP Connectors | Raised | Through Hole | -25 °C | 70 °C | Slide (Standard) | Tin | 50 V | 25 mA | 2.54 mm | 0.1 " | SPST | Phosphor Bronze | 6 | PC Pin | |||

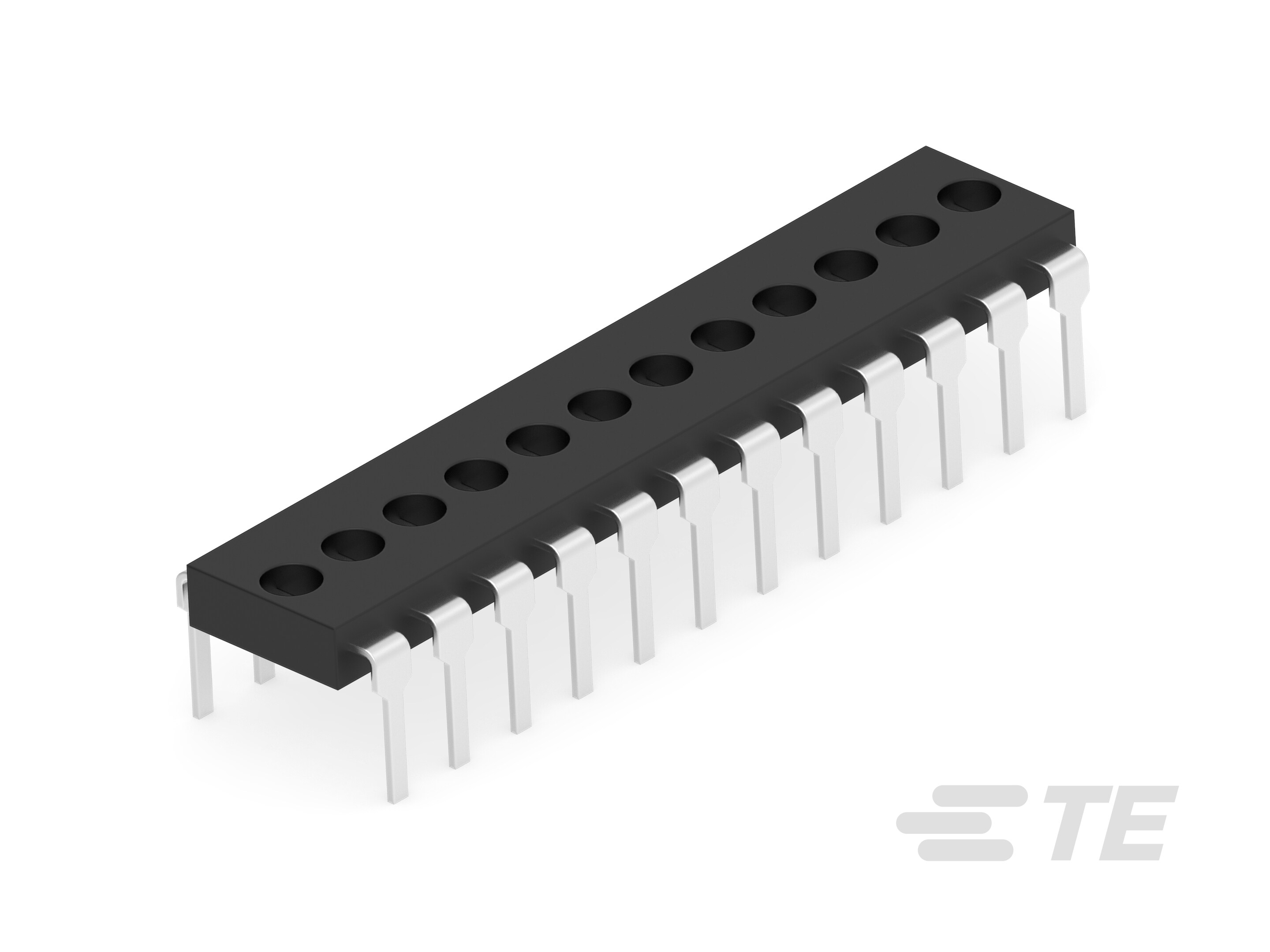

 TE Connectivity AMP Connectors | Flush Recessed | Through Hole | -55 C | 105 ░C | Breakable (Shunt) | Tin | 2.54 mm | 0.1 " | Programmable | Copper Alloy | 12 | PC Pin | 2 mm | 0.079 in |
