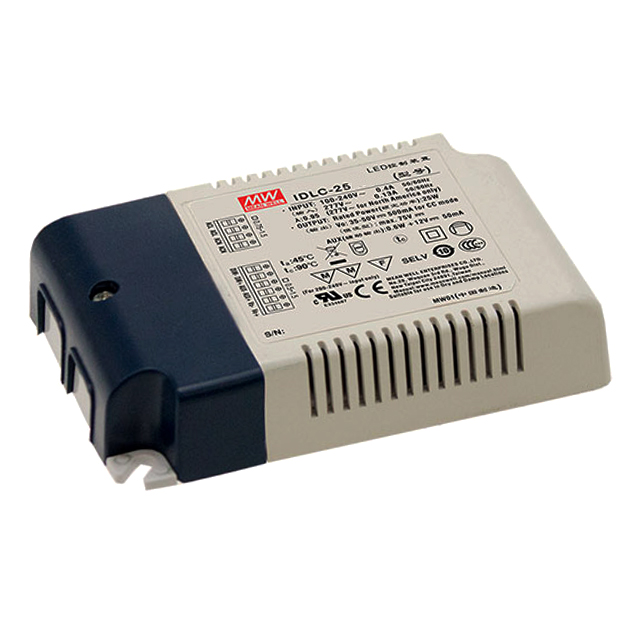

IDLC-25 Series

Catalog

LED DRVR CC AC/DC 25.2-36V 700MA

Part	Mounting Type	Current - Output (Max) [Max]	Termination Style	Approval Agency	Voltage - Output [Max]	Voltage - Output [Min]	Type	Number of Outputs	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Dimming	Voltage - Input (Min) [Min]	Voltage - Isolation	Voltage - Input (Max) [Max]	Topology	Features
MEAN WELL USA Inc. IDLC-25-700	Chassis Mount	700 mA	Terminal Block	CB CCC CE cURus ENEC	36 V	25.2 V	Constant Current	1	81.5 %	-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25A-700	Chassis Mount	700 mA	Terminal Block	CB CCC CE cURus ENEC	36 V	25.2 V	Constant Current	1	81.5 %	-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25-1050	Chassis Mount	1.05 A	Terminal Block	CB CCC CE cURus ENEC	24 V	16.8 V	Constant Current	1	80 %	-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25A-350	Chassis Mount	350 mA	Terminal Block	CB CCC CE cURus ENEC	70 V	49 V	Constant Current	1		-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25A-500	Chassis Mount	500 mA	Terminal Block	CB CCC CE cURus ENEC	50 V	35 V	Constant Current	1	81.5 %	-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25A-1050	Chassis Mount	1.05 A	Terminal Block	CB CCC CE cURus ENEC	24 V	16.8 V	Constant Current	1	80 %	-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
MEAN WELL USA Inc. IDLC-25-350	Chassis Mount	350 mA	Terminal Block	CB CCC CE cURus ENEC	70 V	49 V	Constant Current	1		-20 ░C	90 °C	25 W	Analog PWM	90 VAC	3750 VDC	295 VAC	AC DC Converter	SCP
