CES-803118 Series

Catalog

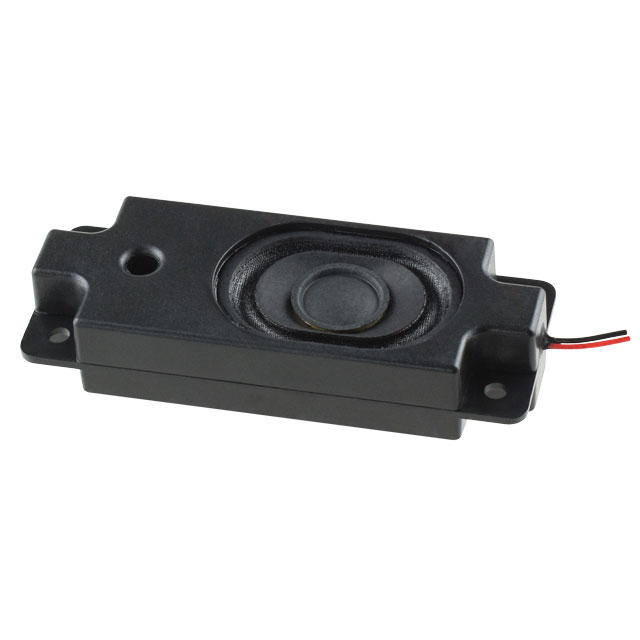

SPEAKER 8OHM 2W TOP PORT 100DB

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Material - Magnet	Efficiency - Type	Shape	Port Location	Efficiency - Testing	Type	Impedance	Frequency Range [Max]	Frequency Range [Min]	Termination	Technology	Frequency - Self Resonant	Power - Rated	Distortion Rating	Power - Max [Max]	Material - Cone	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Efficiency - dBA	Operating Temperature [Min]	Operating Temperature [Max]
Same Sky (Formerly CUI Devices) CES-803118-28PM	0.709 in	18 mm	Nd-Fe-B	Sound Pressure Level (SPL)	Rectangular	Top	2 W/100mm	General Purpose Enclosure Included	8 Ohms	20 kHz	200 Hz	Wire Leads	Magnetic	650 Hz	2 W	5 %	3 W	Cloth	80 mm	3.15 "	1.224 in	31.1 mm	100 dBA	-20 ░C	60 °C
Same Sky (Formerly CUI Devices) CES-803118-28PM	0.709 in	18 mm	Nd-Fe-B	Sound Pressure Level (SPL)	Rectangular	Top	2 W/100mm	General Purpose Enclosure Included	8 Ohms	20 kHz	200 Hz	Wire Leads	Magnetic	650 Hz	2 W	5 %	3 W	Cloth	80 mm	3.15 "	1.224 in	31.1 mm	100 dBA	-20 ░C	60 °C
