CC Series

Manufacturer: YAGEO

Catalog

Catalog

MULTILAYER CERAMIC CAPACITORS MLCC - SMD/SMT 100V 0.33UF X7R 0805 10%

...

Part	Mounting Type	Capacitance	Tolerance	Voltage - Rated	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Thickness (Max) [Max]	Thickness (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Temperature Coefficient	Thickness (Max)	Thickness (Max) [Max] [z]	Size / Dimension [y]	Package / Case
YAGEO CC0805KKX7R0BB334	MLCC Surface Mount	0.33 µF	10 %	100 V	0805	-55 C	125 °C	1.45 mm	0.057 "	General Purpose	2 mm	1.25 mm	0.049 "	0.079 in	X7R
YAGEO CC1206JRX7R9BB563	MLCC Surface Mount	56000 pF	5 %	50 VDC	1206 (3216 Metric)	-55 C	125 °C	1.8 mm	0.071 in	General Purpose	3.2 mm	1.6 mm	0.063 "	0.126 "	X7R
YAGEO CC1812KKX7R0BB684	MLCC Surface Mount	0.68 µF	10 %	100 V	1812 (4532 Metric)	-55 C	125 °C	1.45 mm	0.057 "	General Purpose	4.5 mm	3.2 mm	0.126 in	0.177 in	X7R

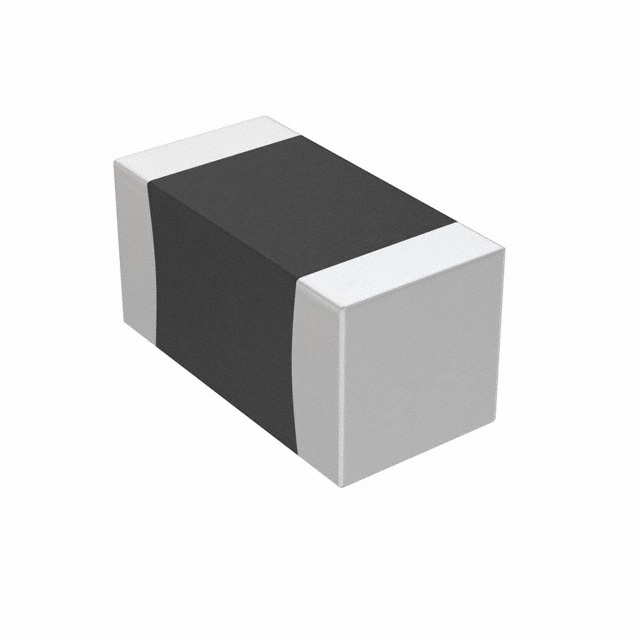

YAGEO CC0402JRNPO9BN220	MLCC Surface Mount	22 pF	5 %	50 VDC	0402 (1005 Metric)	-55 C	125 °C		0.022 in	General Purpose	1 mm	0.5 mm	0.02 in	0.039 "	C0G NP0	0.55 mm

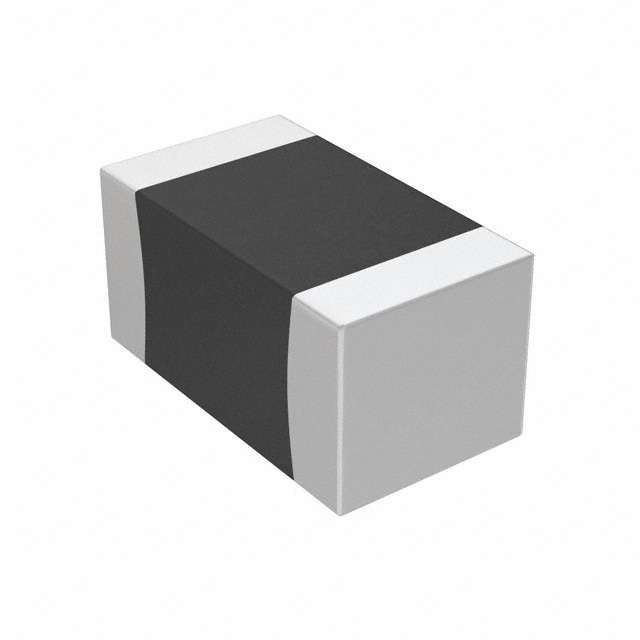

YAGEO CC0603JRNPO9BN391	MLCC Surface Mount	390 pF	5 %	50 VDC	0603	-55 C	125 °C			General Purpose	1.6 mm		0.031 in	0.063 "	C0G NP0	0.9 mm	0.035 in	0.8 mm	1608 Metric
YAGEO CC0402BRNPO9BN1R2	MLCC Surface Mount	1.2 pF	0.1 pF	50 VDC	0402 (1005 Metric)	-55 C	125 °C		0.022 in	General Purpose	1 mm	0.5 mm	0.02 in	0.039 "	C0G NP0	0.55 mm
YAGEO CC0603GRNPO9BN101	MLCC Surface Mount	100 pF	2 %	50 VDC	0603	-55 C	125 °C			General Purpose	1.6 mm		0.031 in	0.063 "	C0G NP0	0.9 mm	0.035 in	0.8 mm	1608 Metric
YAGEO CC0603JPNPO9BN620	MLCC Surface Mount	62 pF	5 %	50 VDC	0603	-55 C	125 °C			General Purpose	1.6 mm		0.031 in	0.063 "	C0G NP0			0.8 mm	1608 Metric
YAGEO CC0805FRNPO9BN152	MLCC Surface Mount	1500 pF	1 %	50 VDC	0805	-55 C	125 °C	0.95 mm	0.037 in	General Purpose	2 mm	1.25 mm	0.049 "	0.079 in	C0G NP0
YAGEO CC0201BRNPO8BN4R7	MLCC Surface Mount	4.7 pF	0.1 pF	25 VDC	0201	-55 C	125 °C		0.013 "	General Purpose	0.024 in	0.012 in	0.3 mm	0.6 mm	C0G NP0	0.33 mm			0603 Metric
