FKCOW Series

Catalog

PLUGGABLE TERMINAL BLOCKS FKCOW2,5/17-STF-5,08

Part	Material Flammability Rating	Wire Strip Length	Insulation Height	Insulation Height	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Color	Mounting Type	Current - UL	Contact Mating Finish	Positions Per Level	Plug Wire Entry [custom]	Features	Type	Voltage - IEC	Termination Style	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Number of Levels	Voltage - UL	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Pitch	Pitch	Number of Positions
Phoenix Contact 1860921	UL94 V-0	10 mm	0.933 "	23.7 mm	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	Green	Free Hanging (In-Line)	12 A	Tin	17	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in

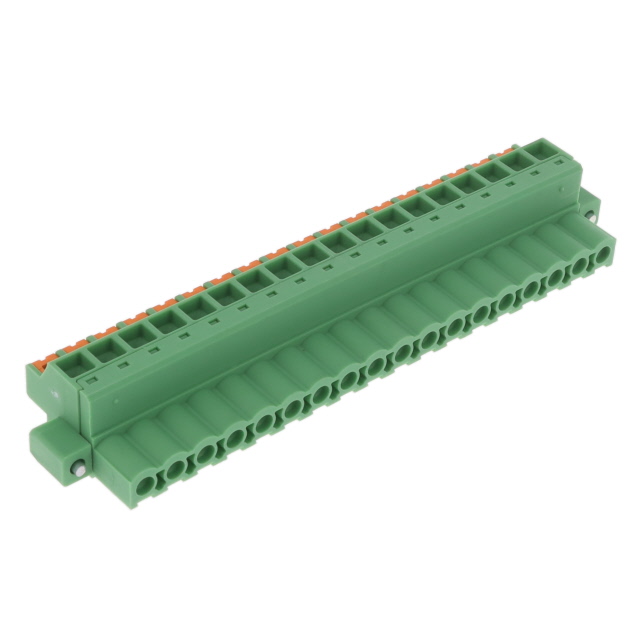

Phoenix Contact 1860934	UL94 V-0	10 mm	0.933 "	23.7 mm			Polyamide (PA) Nylon	Green	Free Hanging (In-Line)	12 A	Tin	18	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in	18

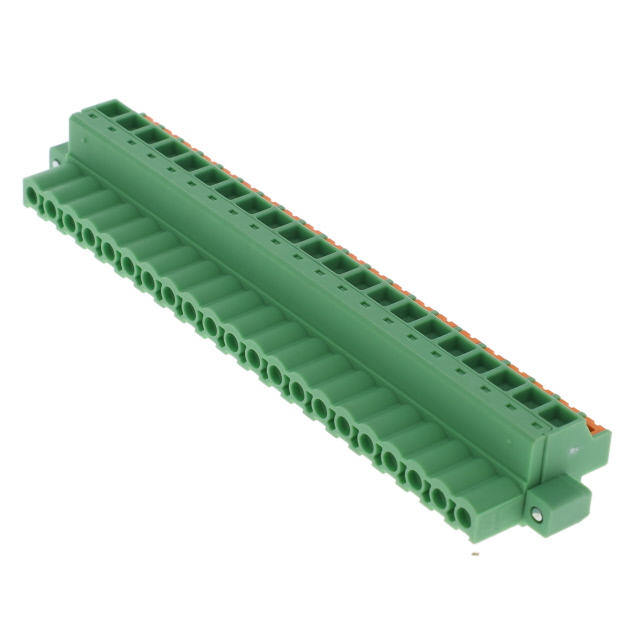

Phoenix Contact 1860963	UL94 V-0	10 mm	0.933 "	23.7 mm	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	Green	Free Hanging (In-Line)	12 A	Tin	21	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in	21
Phoenix Contact 1860950								Green	Free Hanging (In-Line)	12 A	Tin	20	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in	20
Phoenix Contact 1860947	UL94 V-0	10 mm	0.933 "	23.7 mm			Polyamide (PA) Nylon	Green	Free Hanging (In-Line)	12 A	Tin	19	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in	19

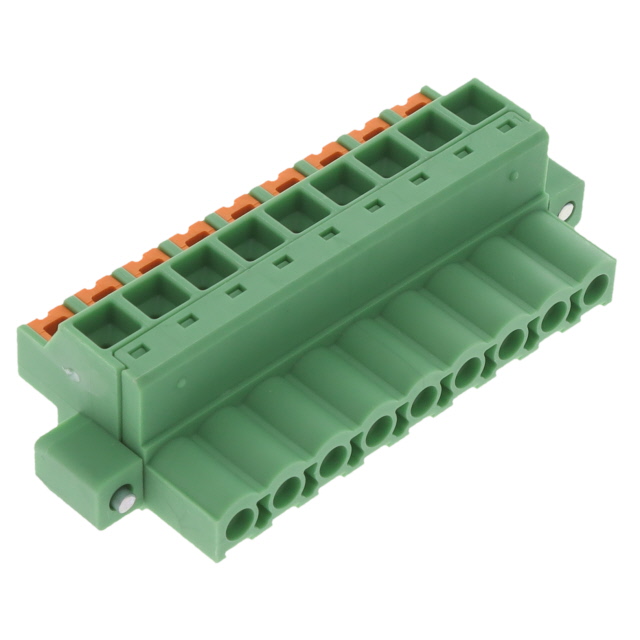

Phoenix Contact 1860840	UL94 V-0	10 mm	0.933 "	23.7 mm	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	Green	Free Hanging (In-Line)	12 A	Tin	9	270 °	Lever Actuated Mating Flange Retention Latches (Non-Wire Side)	Plug Female Sockets	320 V	Push-In Spring Screwless - Leg Spring	12 A	2.5 mm²	0.2 mm²	1	300 V	12 AWG	26 AWG	5.08 mm	0.2 in	9
