RACM40-15 Series

Catalog

AC/DC OPEN FRAME POWER SUPPLY (PSU), MEDICAL, 1 OUTPUT, 40 W, 80V AC TO 264V AC, FIXED

Part	Applications	Voltage - Isolation	Number of Outputs	Current - Output 1	Power (Watts)	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Features	Efficiency	Voltage - Output 1	Type	Mounting Type	Load Regulation	Line Regulation	Current - Output (Max) [Max]	Package / Case	Size / Dimension [z]	Size / Dimension [y]

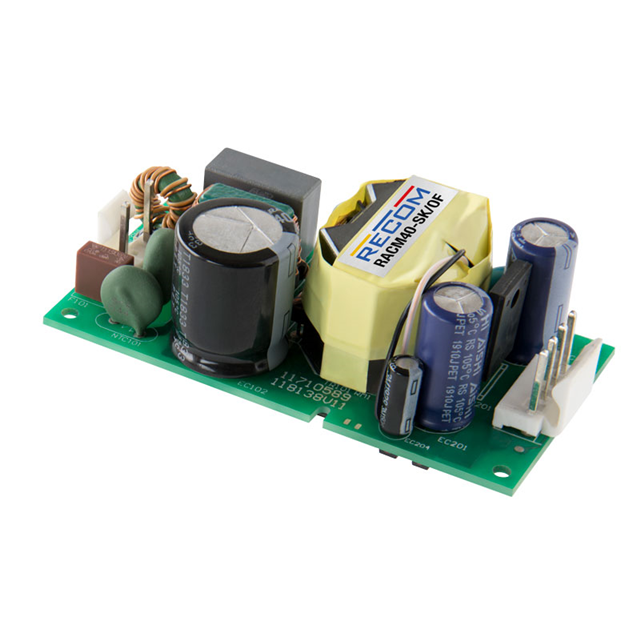

Recom Power RACM40-15SK/OF	Medical	4000 V	1	2.667 A	40 W	CE CSA cURus	-40 °C	85 °C	1.6 in	40.6 mm	3.08 in	25.5 mm	1 in	78.3 mm	80 VAC 120 VDC	264 VAC 370 VDC	60601-1	Standby Output Universal Input	90 %	15 V	Open Frame	Chassis Mount
Recom Power RACM40-15SK/OF/2X3	Medical	4000 V	1	2.667 A	40 W	CE CSA cURus	-40 °C	85 °C	2.09 "	53 mm	3.08 in	25.5 mm	1 in	78.3 mm	80 VAC 120 VDC	264 VAC 370 VDC	60601-1	Standby Output Universal Input	90 %	15 V	Open Frame	Chassis Mount
Recom Power RACM40-15SK/OF/PCB-T	Medical		1		40 W	CE CSA cURus	-40 °C	85 °C	1.6 in	40.6 mm	3.08 in	28.9 mm	1.14 in	78.3 mm	80 VAC 120 VDC	264 VAC 370 VDC		Standby Output Universal Input	90 %	15 V	Open Frame	Through Hole	0.7 %	0.05 %	2.667 A	7-DIP Module 6 Leads
Recom Power RACM40-15SK/OF-CTN	Medical	4000 V	1	2.667 A	40 W	CE CSA cURus	-40 °C	85 °C	1.6 in	40.6 mm	3.08 in	25.5 mm	1 in	78.3 mm	80 VAC 120 VDC	264 VAC 370 VDC	60601-1	Standby Output Universal Input	90 %	15 V	Open Frame	Chassis Mount

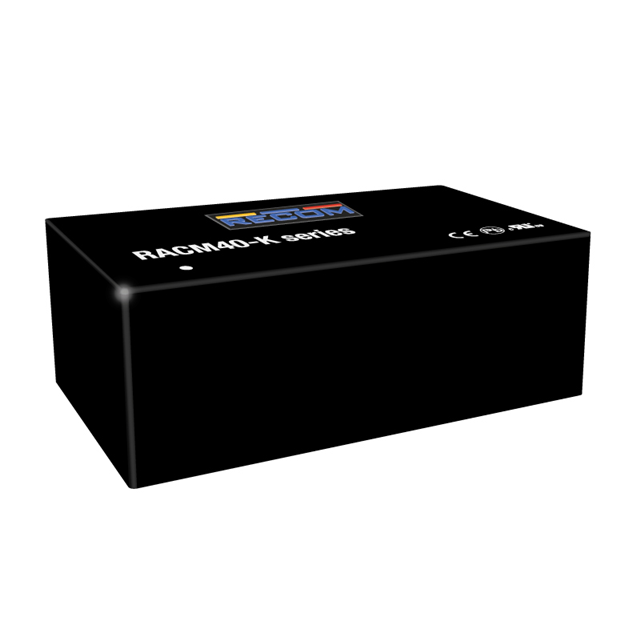

Recom Power RACM40-15SK-T	Medical		1		40 W	CE CSA cURus EAC	-40 °C	85 °C						3.28 in 83.2 mm	80 VAC 120 VDC	264 VAC 370 VDC		Baseplate Standby Output Universal Input	90 %	15 V	Enclosed	Through Hole	0.7 %	0.05 %	2.667 A	6-DIP Module	1.2 in 30.4 mm	1.83 in 46.4 mm
