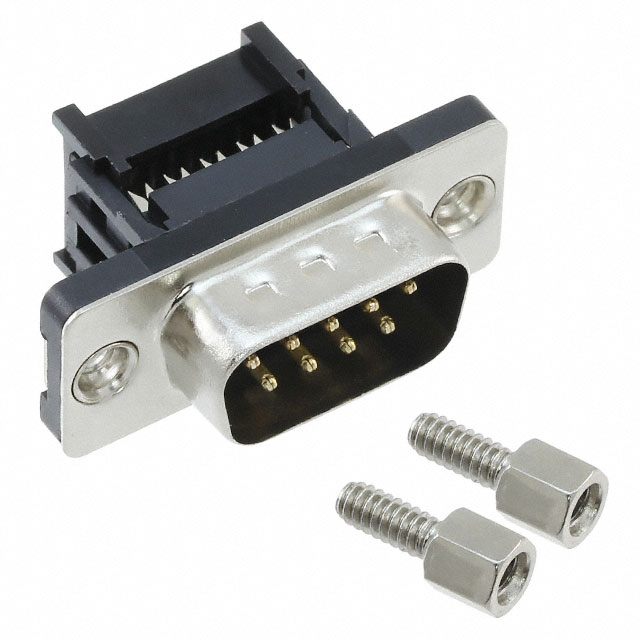

410M0-09 Series
Manufacturer: CNC Tech
Beta
⌘K
CONN D-SUB PLUG 9POS IDC
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Connector Style | Number of Rows [custom] | Flange Feature | Number of Positions | Connector Type | Shell Material, Finish | Contact Type | Mounting Type | Material Flammability Rating | Termination | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Brass | -40 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 1 | DE E | Feed Through Grounding Indents Strain Relief | D-Sub | 2 | 4-40 Mating Side Female Screwlock | 9 | Plug Male Pins | Nickel Plated Steel | Signal | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Gold |
 CNC Tech | Brass | -40 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | 1 | DE E | Feed Through Grounding Indents | D-Sub | 2 | 4-40 Mating Side Female Screwlock | 9 | Plug Male Pins | Nickel Plated Steel | Signal | Free Hanging (In-Line) | UL94 V-0 | IDC Ribbon Cable | Gold |
