3539 Series

Catalog

CBL RIBN 50COND 0.05 GRAY 300'

Part	Insulation Resistance	Conductor Material	First Conductor Mark	Ribbon Width [custom]	Ribbon Width [custom]	Jacket (Insulation) Material	Length	Length	Conductor Strand	Conductor Strand [custom]	Cable Type	Voltage	Ribbon Thickness	Ribbon Thickness	Features	Ratings	Pitch	Pitch	Wire Gauge	Shielding	Jacket Color	Number of Conductors	Operating Temperature [Min]	Operating Temperature [Max]	Length [x]	Length [x]	Number of Conductors [custom]	Number of Conductors [custom]
3M Electronic Specialty 3539/50	10 GOhm	Copper Tinned	Red	2.5 in	63.5 mm	Poly-Vinyl Chloride (PVC)	91440 mm	3600 in	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	50	-20 ░C	105 ░C
3M Electronic Specialty 3539/50 100	10 GOhm	Copper Tinned	Red	2.5 in	63.5 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	50	-20 ░C	105 ░C
3M Electronic Specialty 3539/37	10 GOhm	Copper Tinned	Red	1.85 in	46.99 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	37	-20 ░C	105 ░C
3M Electronic Specialty 3539/34SF	10 GOhm	Copper Tinned	Red	1.7 in	43.18 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Splice Free Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	34	-20 ░C	105 ░C
3M Electronic Specialty 3539/20 300	10 GOhm	Copper Tinned	Red	1 in	25.4 mm	Poly-Vinyl Chloride (PVC)	91440 mm	3600 in	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	20	-20 ░C	105 ░C
3M Electronic Specialty 3539/30	10 GOhm	Copper Tinned	Red	1.5 in	38.1 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	30	-20 ░C	105 ░C
3M Electronic Specialty 3539/10 300	10 GOhm	Copper Tinned	Red	0.5 in	12.7 mm	Poly-Vinyl Chloride (PVC)	7.62 m 30.48 m 304.8 mm 91440 mm	1 ft 25 ft 100 ' 3600 in	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray		-20 ░C	105 ░C	50 ft	15.24 m	10
3M Electronic Specialty 3539/60	10 GOhm	Copper Tinned	Red	3 in	76.2 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	60	-20 ░C	105 ░C
3M Electronic Specialty 3539/64	10 GOhm	Copper Tinned	Red	3.2 in	81.28 mm	Poly-Vinyl Chloride (PVC)	30.48 m	100 '	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray		-20 ░C	105 ░C				64

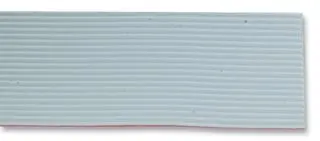

3M Electronic Specialty 3539/06	10 GOhm	Copper Tinned	Red			Poly-Vinyl Chloride (PVC)	7.62 m 30.48 m 304.8 mm 91440 mm	1 ft 25 ft 100 ' 3600 in	40 AWG	19	Flat Cable	300 VDC	0.89 mm	0.035 in	Zippable	UL Style 2651	0.05 in	1.27 mm	28 AWG	Unshielded	Gray	6	-20 ░C	105 ░C	50 ft	15.24 m
