VDP Series

Catalog

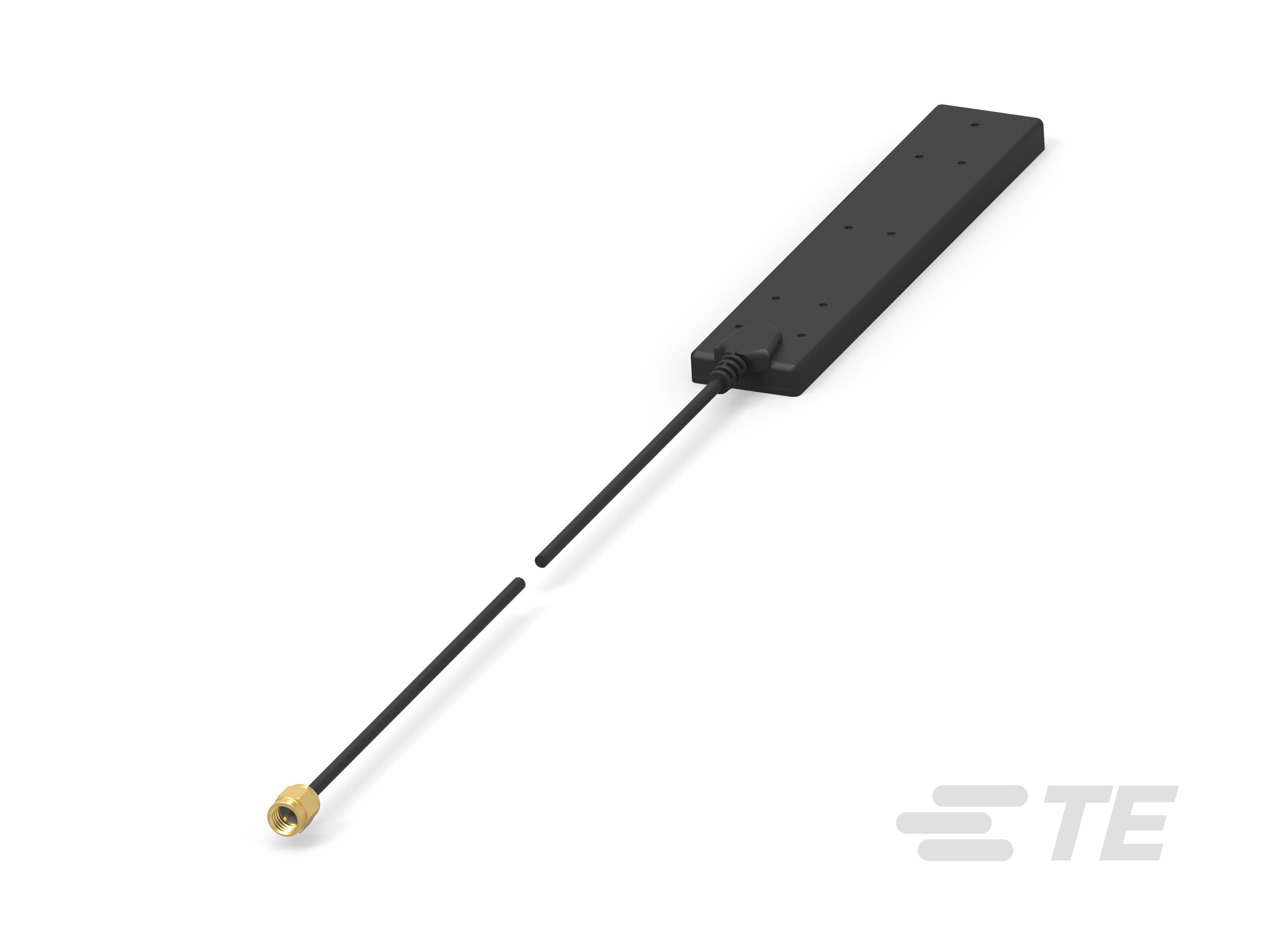

CELLULAR ANTENNA, 4.94-4.99GHZ, -3.3DBI ROHS COMPLIANT: YES

Part	Features	Frequency Range [Min]	Frequency Range [Max]	RF Family/Standard	Number of Bands	Antenna Type	Mounting Type	Power - Max [Max]	Applications	VSWR	Frequency Group	Height (Max) [z]	Height (Max) [z]	Frequency (Center/Band)	Gain	Ingress Protection
TE Connectivity AMP Connectors L000618-03	Cable - 3m	1.553 GHz 1.71 GHz 2.3 GHz 2.4 GHz 2.496 GHz 3.3 GHz 3.55 GHz 3.7 GHz 4.94 GHz 617 MHz 698 MHz 791 MHz	1.609 GHz 2.2 GHz 2.4 GHz 2.69 GHz 3.7 GHz 3.8 GHz 4.2 GHz 4.99 GHz 698 MHz 803 MHz 960 MHz 2485 MHz	Cellular General ISM Navigation WiFi	12	Flat Bar	Adhesive	10 W	5G CBRS GNSS GPS IoT ISM LTE UMTS Wi-Fi	1.3 1.4 1.5 1.6 1.7 2.2 2.5	Wide Band	8.64 mm	0.34 in	1.581 GHz 1.955 GHz 2.35 GHz 2.442 GHz 2.593 GHz 3.55 GHz 3.625 GHz 3.95 GHz 4.965 GHz 657.5 MHz 750.5 MHz 875.5 MHz	-3.3 dBi -1 dBi 0 dBi 1.3 dBi 1.8 dBi 3.9 dBi 4.2 dBi 4.5 dBic 4.9 dBic	IP67
