BRF Series
Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non-Iso POL SMT
Manufacturer: Cosel USA, Inc.
Catalog
Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non-Iso POL SMT
Beta
⌘K
Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non-Iso POL SMT
Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non-Iso POL SMT
Non-Isolated DC/DC Converters 4.5-14Vin 0.6-1.8V 120A Non-Iso POL SMT
| Part | Mounting Type | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Type | Current - Output (Max) [Max] | Package / Case | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Approval Agency | Features | Efficiency | Number of Outputs | Applications | Voltage - Output 1 [Min] | Voltage - Output 1 [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

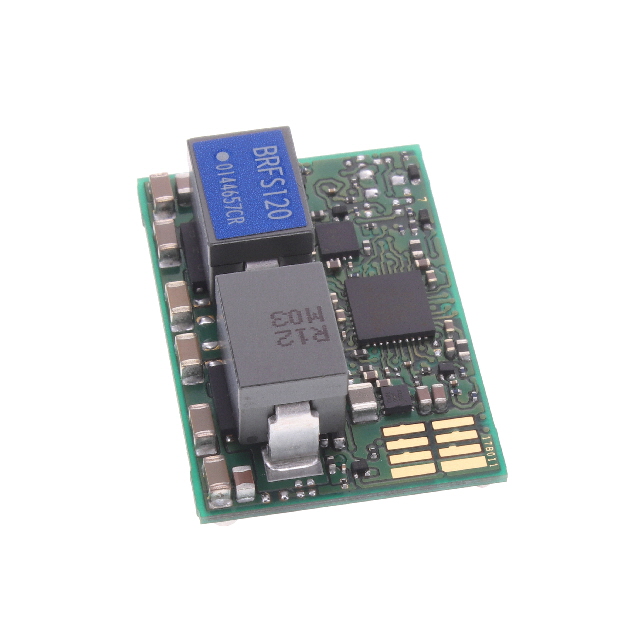

 Cosel USA, Inc. | Surface Mount | 12.7 mm | 22.86 mm | 1.3 in | 12.7 mm | 33 mm | 22.9 mm | Non-Isolated PoL Module | 120 A | 14-SMD Module | 4.5 V | 14 V | CE cURus TUV | OCP Remote On/Off Remote Sensing | 89 % | 1 | ITE (Commercial) | 0.6 V | 1.8 V | -40 °C | 85 °C | |||

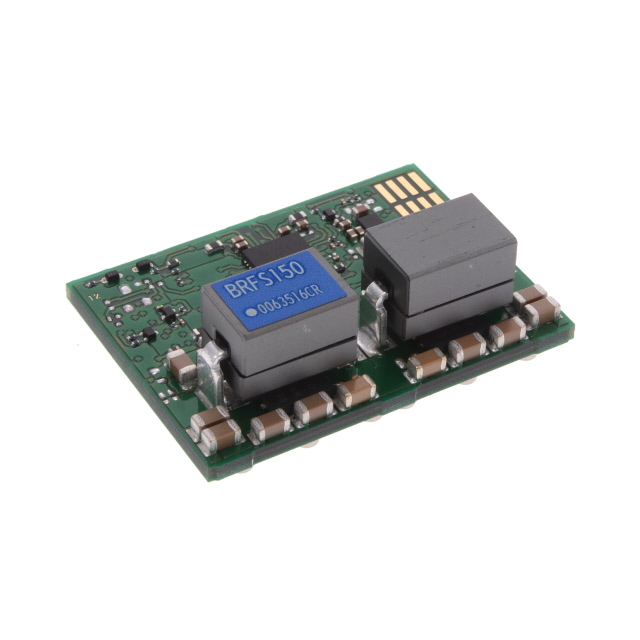

 Cosel USA, Inc. | Surface Mount | 13.8 mm | 27.7 mm | 38 mm | Non-Isolated PoL Module | 150 A | 20-SMD Module | 4.5 V | 14 V | CE cURus TUV | OCP Remote On/Off Remote Sensing | 89 % | 1 | ITE (Commercial) | 0.6 V | 1.8 V | -40 °C | 85 °C | 0.54 " | 1.09 " | 1.5 in |
