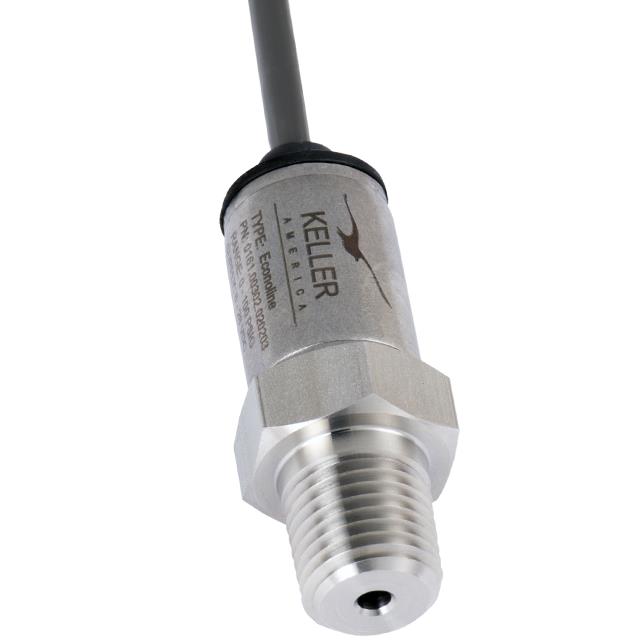

0161.02102 Series
Manufacturer: Keller America Inc
Beta
⌘K
SENSOR 150PSIG 1/4"NPT .02A
| Part | Operating Pressure | Operating Pressure | Accuracy | Port Size | Port Size | Port Size | Maximum Pressure [Max] | Maximum Pressure [Max] | Voltage - Supply [Max] | Voltage - Supply [Min] | Features | Pressure Type | Package / Case | Port Style | Operating Temperature [Min] | Operating Temperature [Max] | Output [Min] | Output [Max] | Output Type | Termination Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Keller America Inc | 1034.21 kPa | 150 PSI | 0.25 % | Male NPT | 0.25 " | 0.25 in | 300 PSI | 2068.43 kPa | 32 VDC | 8 V | Temperature Compensated | Vented Gauge | Cylinder Threaded | Threaded | -40 C | 100 °C | 4 mA | 20 mA | Analog Current | Cable 10' |
