8NE Series

Catalog

STANDARD CLOCK OSCILLATORS 2.0X1.6 LOW EMI CMOS QUARTZ OSCILLATOR / CERAMIC, 2.5V, +/-50PPM (-40 TO 125C)

Part	Package / Case	Function	Type	Frequency Stability	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Base Resonator [custom]	Mounting Type	Frequency	Voltage - Supply	Current - Supply (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Output
TXC CORPORATION 8NE-25.000MCM-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	25 MHz	2.5 V	10 mA	0.032 in	0.81 mm	125 °C	-40 C
TXC CORPORATION 8NE-20.000MDE-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	20 MHz	1.8 V	10 mA	0.032 in	0.81 mm	85 °C	-40 C
TXC CORPORATION 8NE-30.000MCM-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	30 MHz	2.5 V	10 mA	0.032 in	0.81 mm	125 °C	-40 C
TXC CORPORATION 8NE-30.000MDJ-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	30 MHz	1.8 V	10 mA	0.032 in	0.81 mm	105 ░C	-40 C

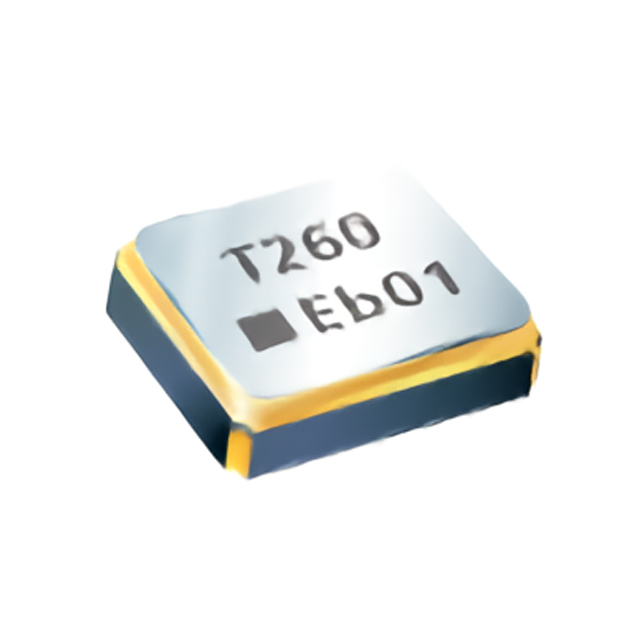

TXC CORPORATION 8NE-20.000MBM-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	20 MHz	3.3 V	10 mA	0.032 in	0.81 mm	125 °C	-40 C	CMOS
TXC CORPORATION 8NE-20.000MBM-T	4-SMD No Lead	Enable/Disable	XO (Standard)	50 ppm	1.6 mm	0.079 in	0.063 "	2 mm	Crystal	Surface Mount	20 MHz	3.3 V	10 mA	0.032 in	0.81 mm	125 °C	-40 C
