Slide-On Style Series

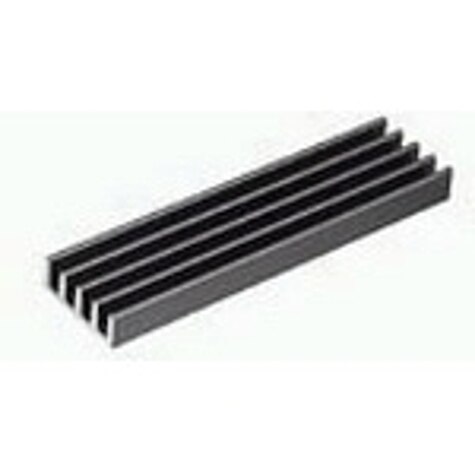

Heat Sinks Slide-On Heat Sink+Epoxy Attach-On for DIPS, Horizontal, 34 C/W, 31.75mm
Manufacturer: Boyd Laconia, LLC
Catalog
Heat Sinks Slide-On Heat Sink+Epoxy Attach-On for DIPS, Horizontal, 34 C/W, 31.75mm
Heat Sinks Slide-On Heat Sink+Epoxy Attach-On for DIPS, Horizontal, 34 C/W, 31.75mm
Heat Sinks Slide-On Heat Sink+Epoxy Attach-On for DIPS, Horizontal, 34 C/W, 31.75mm
Heat Sinks Slide-On Heat Sink+Epoxy Attach-On for DIPS, Horizontal, 34 C/W, 31.75mm
| Part | Power Dissipation @ Temperature Rise | Thermal Resistance @ Forced Air Flow | Material | Fin Height | Fin Height | Shape [custom] | Shape [custom] | Width | Width | Length [x] | Length | Attachment Method | Package Cooled | Material Finish | Thermal Resistance @ Natural | Type | Length | Width [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Boyd Laconia, LLC | 1 W | 15 °C/W | Aluminum | 4.83 mm | 0.19 in | Rectangular | Fins | 0.53 in | 13.46 mm | 1.25 in | 31.75 mm | Thermal Tape Adhesive | 24-DIP | Black Anodized | 34 °C/W | Top Mount | ||
Boyd Laconia, LLC | 1.5 W | 8 °C/W | Aluminum | 10.03 mm | 0.395 in | Rectangular | Fins | 21.84 mm | 19.05 mm | Clip and PC Pin | TO-220 | Black Anodized | 23.2 °C/W | Board Level Vertical | 0.75 in | 0.86 in |
