LTM4691 Series

Catalog

DC/DC POL CONVERTER, ADJUSTABLE, BUCK, 2.25 V TO 3.6 V, 500 MV TO 2.5 V /2 A OUT, BGA-24

Part	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]	Voltage - Input (Min) [Min]	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Features	Number of Outputs	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Current - Output (Max) [Max]	Voltage - Output 2 [Max]	Voltage - Output 2 [Min]	Type	Applications	Package / Case	Voltage - Input (Max) [Max]

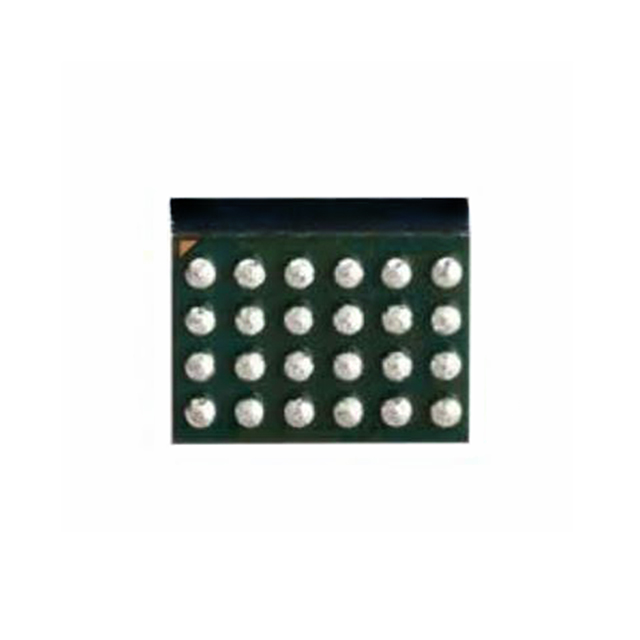

Analog Devices Inc./Maxim Integrated LTM4691EY#PBF	0.5 V	2.5 V	2.25 V	Surface Mount	-40 °C	125 °C	24-LGA (3x4)	Adjustable Output Remote Sense	2	0.05 in	1.3 mm	0.16 in	3 mm	4 mm	0.12 inches	2 A	2.5 V	0.5 V	Non-Isolated PoL Module	ITE (Commercial)	24-LFLGA Module	3.6 V
Analog Devices Inc./Maxim Integrated LTM4691IY#PBF	0.5 V	2.5 V	2.25 V	Surface Mount	-40 °C	125 °C	24-LGA (3x4)	Adjustable Output Remote Sense	2	0.05 in	1.3 mm	0.16 in	3 mm	4 mm	0.12 inches	2 A	2.5 V	0.5 V	Non-Isolated PoL Module	ITE (Commercial)	24-LFLGA Module	3.6 V
Analog Devices Inc./Maxim Integrated LTM4691IV#PBF	0.5 V	2.5 V	2.25 V	Surface Mount	-40 °C	125 °C	24-LGA (3x4)		2	0.05 in	1.3 mm	0.16 in	3 mm	4 mm	0.12 inches	2 A	2.5 V	0.5 V	Non-Isolated PoL Module	ITE (Commercial)	24-LFLGA Module	3.6 V
Analog Devices Inc./Maxim Integrated LTM4691EV#PBF	0.5 V	2.5 V	2.25 V	Surface Mount	-40 °C	125 °C	24-LGA (3x4)		2	0.05 in	1.3 mm	0.16 in	3 mm	4 mm	0.12 inches	2 A	2.5 V	0.5 V	Non-Isolated PoL Module	ITE (Commercial)	24-LFLGA Module	3.6 V
