ANT Series

Manufacturer: Adam Tech

Catalog

ANTENNAS RF ANT, GPS L1+L5/GLONASS/GALILE

Part	RF Family/Standard	Frequency (Center/Band)	Mounting Type	Height (Max) [z]	Height (Max) [z]	Power - Max [Max]	Frequency Group [Max]	Frequency Group [Min]	Frequency Group	Gain	Number of Bands	Applications	Antenna Type	Return Loss	VSWR	Height (Max) [z]	Frequency Range [Min]	Frequency Range [Max]	Features

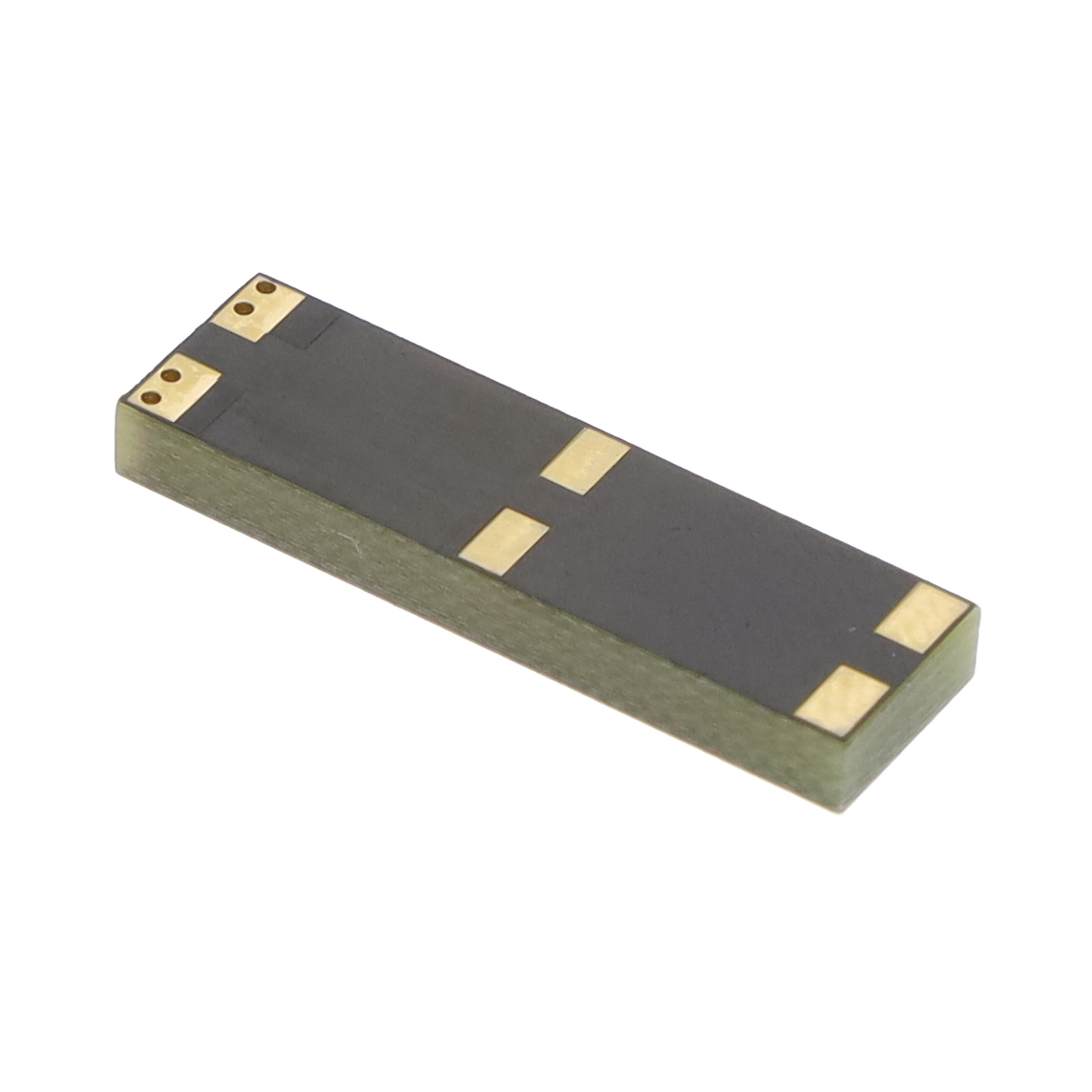

Adam Tech ANT-200051B66	Navigation	1.1765 GHz 1.575 GHz 1.6025 GHz	Surface Mount	3 mm	0.118 in	5 W	2 GHz	1 GHz	UHF	2.5 dBi 2.7 dBi 2.8 dBi	3	GLONASS GNSS GPS	PCB Trace	-21.73 dB -21.1 dB -17.87	1.18 1.19 1.29
Adam Tech ANT-19078EB56	Cellular Navigation	1.575 GHz 1.602 GHz 1.94 GHz 2.495 GHz 829 MHz	Magnetic	0.564 in		5 W			Wide Band	-1 dBi 0.3 dBi 0.4 dBi 0.6 dBi 0.9 dBi 2.5 dBi 3 dBi 3.2 dBi	5	2G 3G 4G Galileo GLONASS GPS	Module	-15 dB -6 dB	2 3	14.32 mm	1.598 GHz 1.71 GHz 2.3 GHz 698 MHz	1.61 GHz 2.17 GHz 2.69 GHz 960 MHz	Cable - 3m Filter

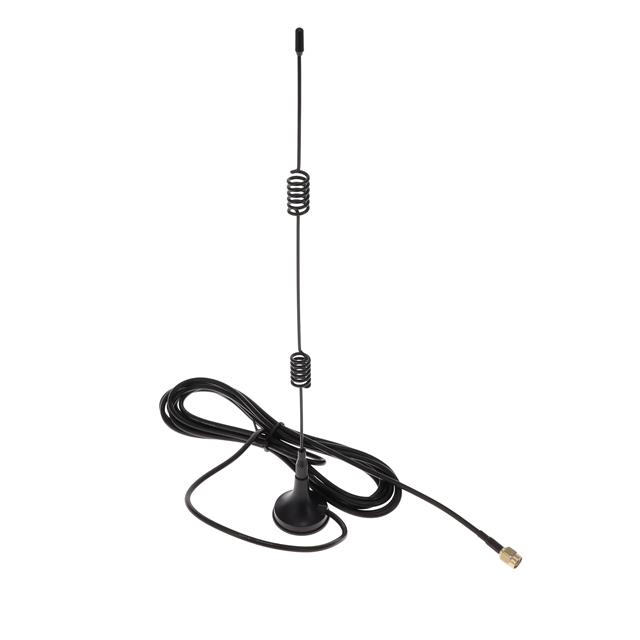

Adam Tech ANT-21012EB56	Cellular Navigation	1.94 GHz 892 MHz	Magnetic	10.354 in		25 W				-2.6 dBi 2.2 dBi 3.1 dBi 4.8 dBi	2	2G 3G GNSS	Whip Straight	-7 dB -5 dB	2.5 3.5	263 mm	1.71 GHz 824 MHz	2.17 GHz 960 MHz	Cable - 2.5m
