R1SX Series

Catalog

ISOLATED SURFACE MOUNT DC/DC CONVERTER, MEDICAL, DIP, 1:1, 1 W, 1 OUTPUT, 5 V

Part	Voltage - Input (Min) [Min]	Approval Agency	Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Number of Outputs	Voltage - Output 1	Mounting Type	Package / Case	Current - Output (Max) [Max]	Efficiency	Type	Applications	Voltage - Isolation
Recom Power R1SX-1205-R	10.8 V	CB cURus	13.2 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	79 %	Isolated Module	ITE (Commercial)	1000 V
Recom Power R1SX-0505/H-R	4.5 V	CB cURus	5.5 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	78 %	Isolated Module	ITE (Commercial)	3000 V
Recom Power R1SX-0505-R	4.5 V	CB cURus	5.5 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	78 %	Isolated Module	ITE (Commercial)	1000 V

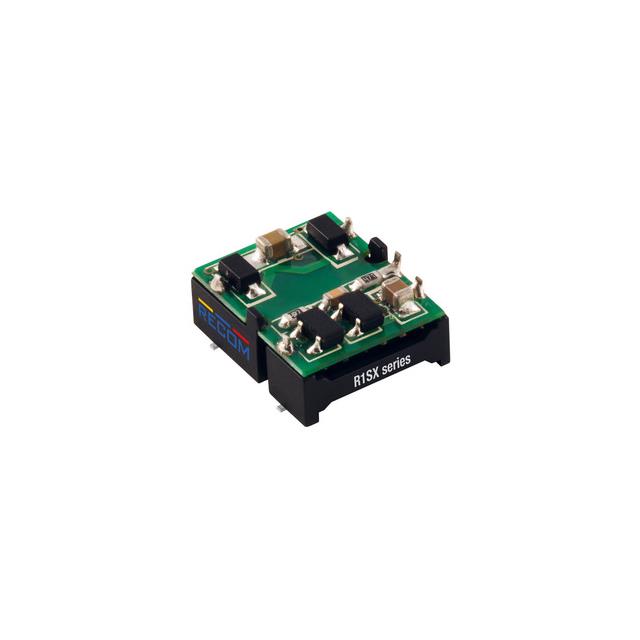

Recom Power R1SX-1205/H-R	10.8 V	CB cURus	13.2 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	79 %	Isolated Module	ITE (Commercial)	3000 V

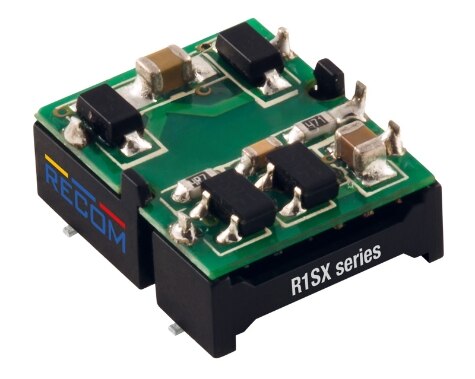

Recom Power R1SX-3.33.3/H-R	2.97 V	CB cURus	3.63 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	3.3 V	Surface Mount	8-SMD Module 5 Leads	303 mA	74 %	Isolated Module	ITE (Commercial)	3000 V
Recom Power R1SX-3.33.3-R	2.97 V	CB cURus	3.63 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	3.3 V	Surface Mount	8-SMD Module 5 Leads	303 mA	74 %	Isolated Module	ITE (Commercial)	1000 V
Recom Power R1SX-3.305/H-R	2.97 V	CB cURus	3.63 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	78 %	Isolated Module	ITE (Commercial)	3000 V
Recom Power R1SX-3.305-R	2.97 V	CB cURus	3.63 V	-40 C	100 °C	12.8 mm	10.8 mm	5.8 mm	0.5 "	0.43 in	0.23 "	1	5 V	Surface Mount	8-SMD Module 5 Leads	200 mA	78 %	Isolated Module	ITE (Commercial)	1000 V
