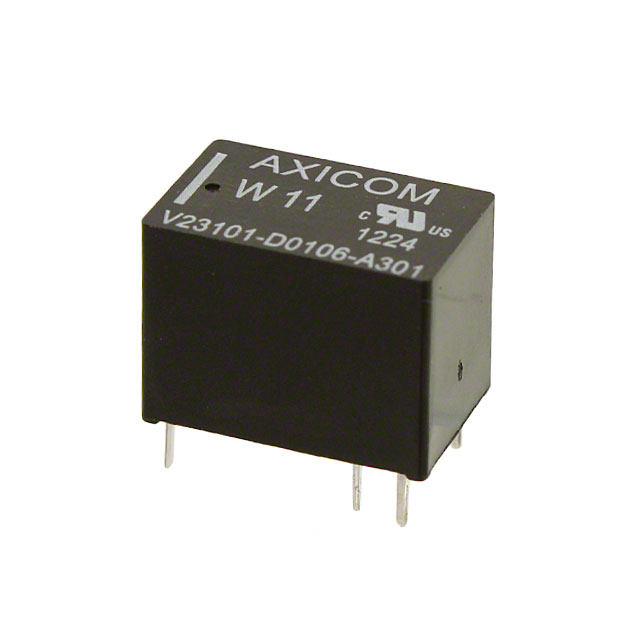

Axicom W11 Relay V23101 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 1.25A 24V
| Part | Operate Time | Coil Current | Termination Style | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Coil Voltage | Must Release Voltage | Relay Type | Coil Type | Contact Form | Contact Material | Mounting Type | Switching Voltage | Contact Rating (Current) | Must Operate Voltage | Load - Max Switching | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 7 ms | 8.6 mA | PC Pin | 5 ms | 85 °C | -40 C | 24 VDC | 2.4 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 18 VDC | 30 W 62.5 VA | |
 TE Connectivity AMP Connectors | 7 ms | 0.0375 A | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Silver Nickel (AgNi) | Through Hole | 120 VDC 125 VAC | 3 A | 8.4 VDC | 360 W 375 VA | |
 TE Connectivity AMP Connectors | 7 ms | 17.2 mA | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 9 VDC | 30 W 62.5 VA | 700 Ohms |
 TE Connectivity AMP Connectors | 7 ms | 17.2 mA | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 9 VDC | 30 W 62.5 VA | |
 TE Connectivity AMP Connectors | 7 ms | 8.6 mA | PC Pin | 5 ms | 85 °C | -40 C | 24 VDC | 2.4 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 18 VDC | 30 W 62.5 VA | |
 TE Connectivity AMP Connectors | 7 ms | 0.0375 A | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 8.4 VDC | 30 W 62.5 VA | 320 Ohms |
 TE Connectivity AMP Connectors | 7 ms | 17.2 mA | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Silver Nickel (AgNi) | Through Hole | 120 VDC 125 VAC | 3 A | 9 VDC | 360 W 375 VA | 700 Ohms |
 TE Connectivity AMP Connectors | 7 ms | 41.6 mA | PC Pin | 5 ms | 85 °C | -40 C | 5 VDC | 0.5 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 3.8 VDC | 30 W 62.5 VA | |
 TE Connectivity AMP Connectors | 7 ms | 17.2 mA | PC Pin | 5 ms | 85 °C | -40 C | 12 VDC | 1.2 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Silver Nickel (AgNi) | Through Hole | 120 VDC 125 VAC | 3 A | 9 VDC | 360 W 375 VA | |
TE Connectivity AMP Connectors | 7 ms | 66.7 mA | PC Pin | 5 ms | 85 °C | -40 C | 0.3 VDC | General Purpose | Non Latching | SPDT (1 Form C) | Gold (Au) Silver Palladium (AgPd) | Through Hole | 120 VDC 125 VAC | 1.25 A | 2.3 VDC | 30 W 62.5 VA |
