4281-2 Series

Manufacturer: CNC Tech

Catalog

CONN RCPT HSG 22POS 4.20MM

Part	Note	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Connector Type	Fastening Type	Number of Rows [custom]	Color	Contact Type	Mounting Type	Number of Positions	Row Spacing	Row Spacing	Pitch	Pitch	Insulation Material
CNC Tech 4281-2-22-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	22	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

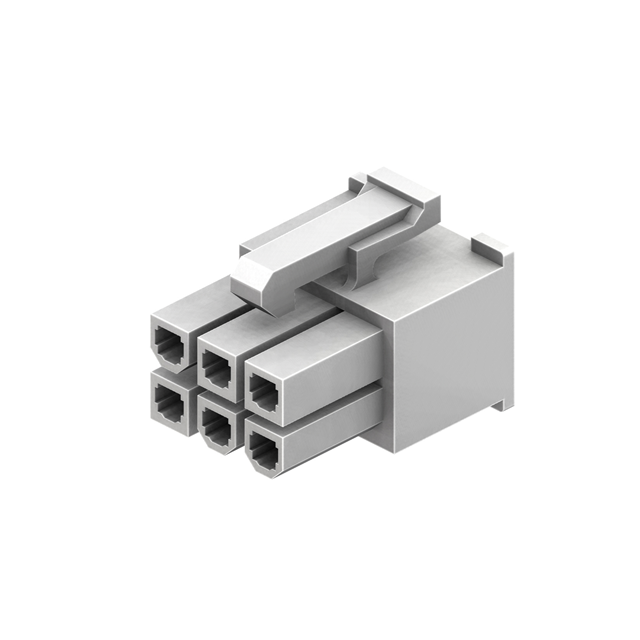

CNC Tech 4281-2-06-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	6	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

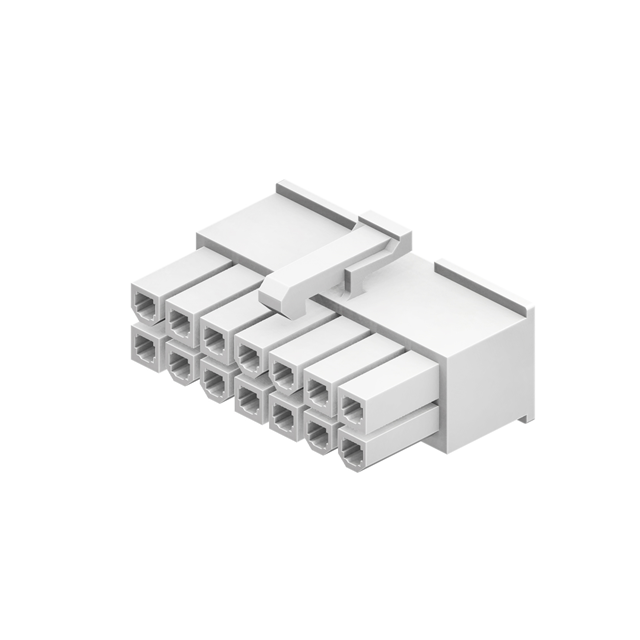

CNC Tech 4281-2-14-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	14	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)
CNC Tech 4281-2-12-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	12	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

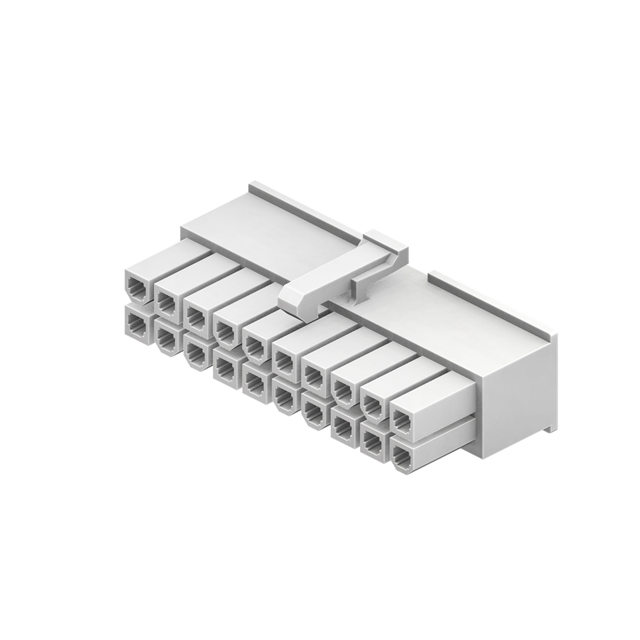

CNC Tech 4281-2-20-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	20	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

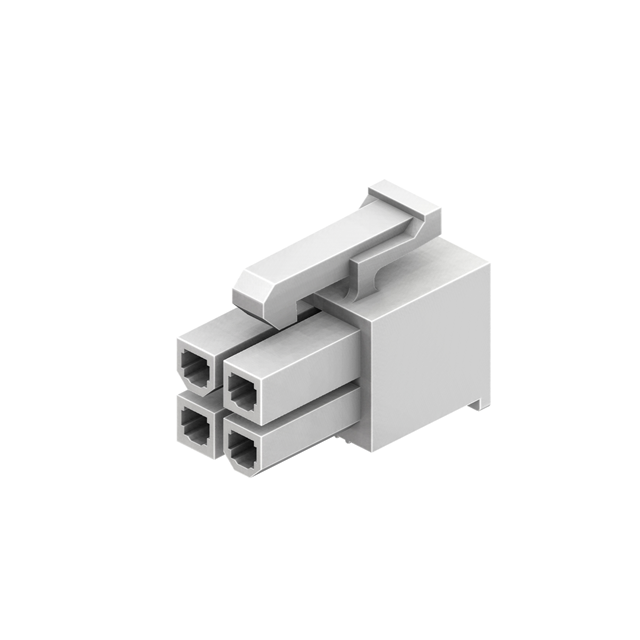

CNC Tech 4281-2-04-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	4	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)
CNC Tech 4281-2-10-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	10	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)
CNC Tech 4281-2-16-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	16	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

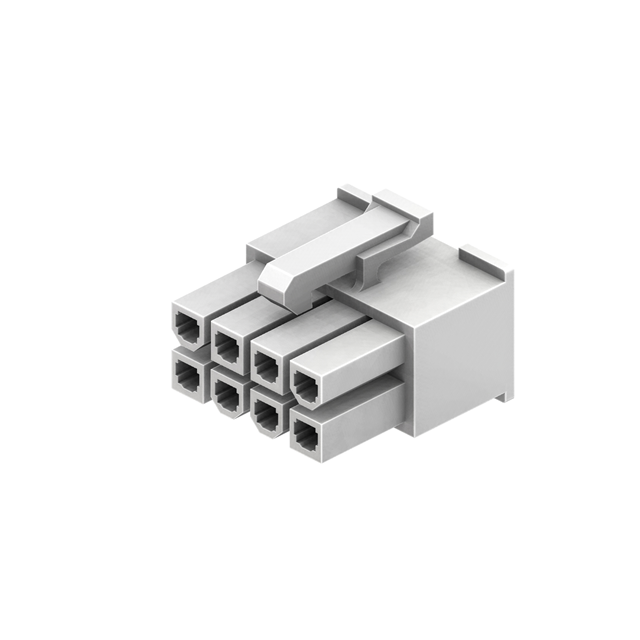

CNC Tech 4281-2-08-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	8	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)

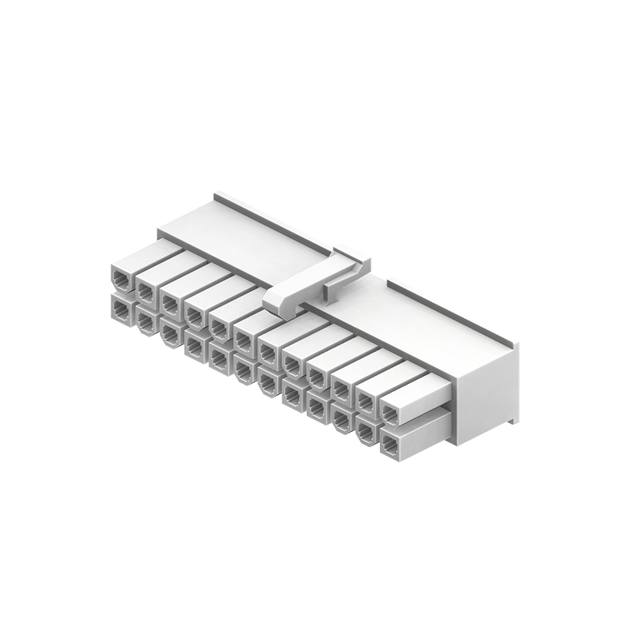

CNC Tech 4281-2-24-D	Contacts Not Included	-40 C	105 ░C	Crimp	Receptacle	Latch Lock	2	White	Female Socket	Free Hanging (In-Line)	24	0.165 in	4.2 mm	0.165 in	4.2 mm	Nylon 6/6 Polyamide (PA66)
