1761609 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN HEADER R/A 40POS 2.54MM

Part	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Shape	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Type	Number of Positions Loaded	Features	Fastening Type	Termination	Contact Finish - Mating	Voltage Rating	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Current Rating (Amps)	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Material	Insulation Color	Contact Material	Contact Finish - Post	Mounting Type	Pitch - Mating	Pitch - Mating	Insulation Height	Insulation Height	Number of Positions	Number of Positions

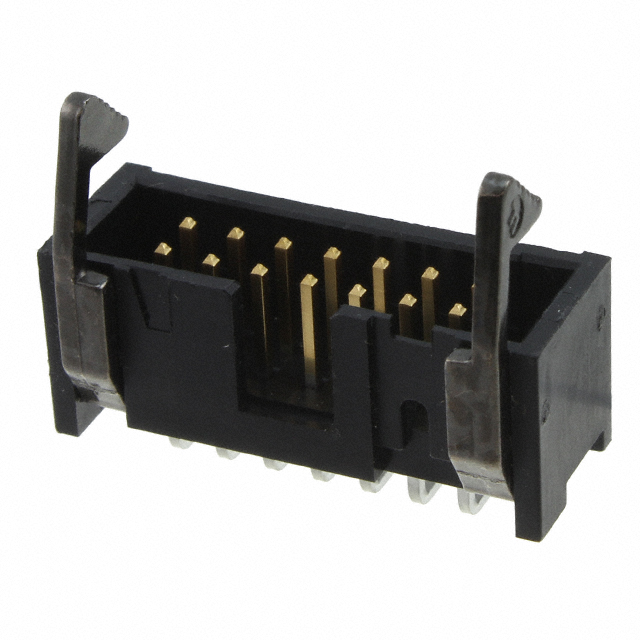

TE Connectivity Raychem Cable Protection 3-1761609-3	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Blue	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	40

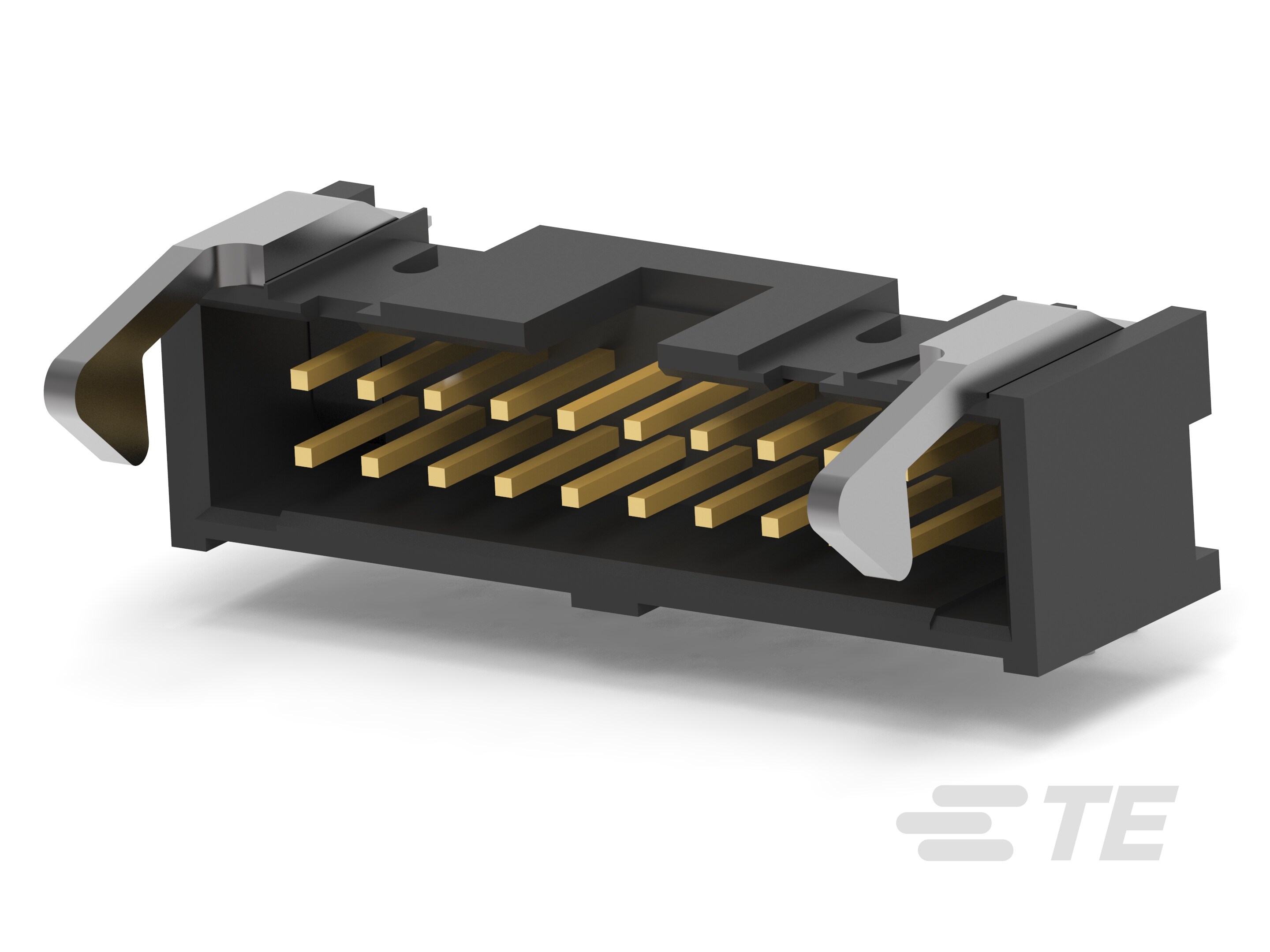

TE Connectivity Raychem Cable Protection 1761609-7	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	20

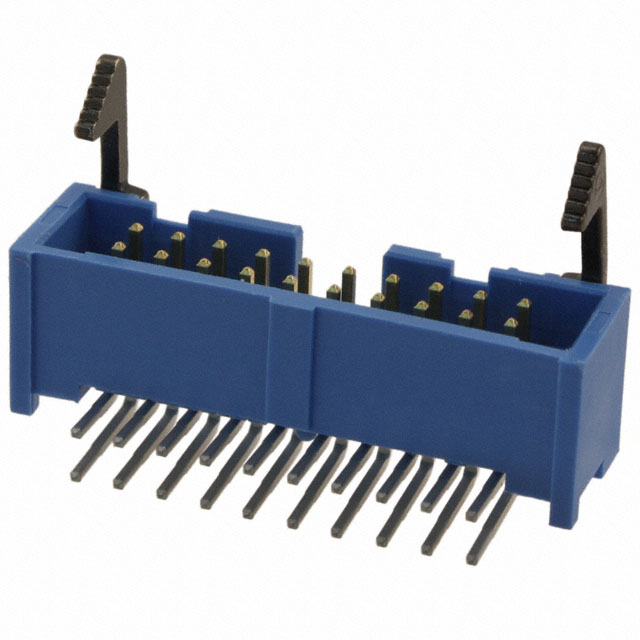

TE Connectivity Raychem Cable Protection 2-1761609-7	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Blue	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	20

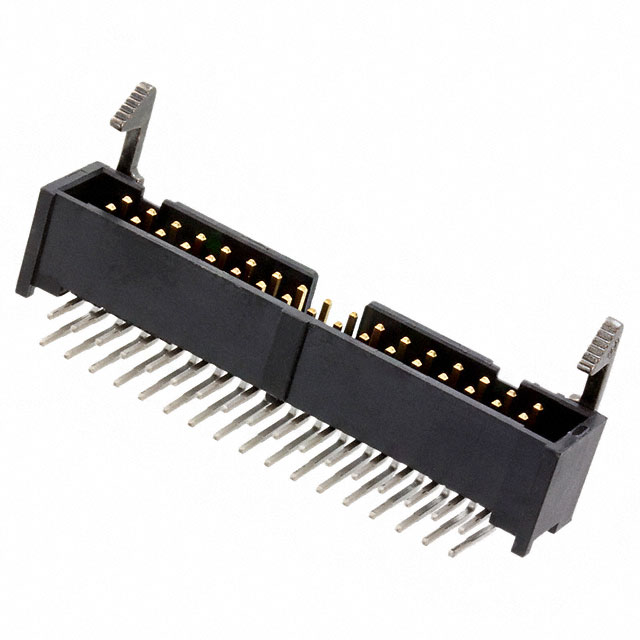

TE Connectivity Raychem Cable Protection 1-1761609-1	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	34
TE Connectivity Raychem Cable Protection 1761609-6	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm		16
TE Connectivity Raychem Cable Protection 1-1761609-5	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	50
TE Connectivity Raychem Cable Protection 2-1761609-8	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Blue	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	24
TE Connectivity Raychem Cable Protection 1761609-5	2	-65 ░C	105 ░C	Header	Square	2.54 mm	0.1 in	Male Pin	All	Keying Slot	Latch Lock/Eject Hooks Short	Solder	Gold or Gold-Palladium	250 VAC	0.102 in	2.6 mm	6.02 mm	0.237 in	1 A	Board to Cable/Wire	30 Áin	0.76 Ám	Shrouded - 4 Wall	UL94 V-0	2.54 µm	100 µin	Polybutylene Terephthalate (PBT)	Black	Phosphor Bronze	Tin	Through Hole Right Angle	0.1 in	2.54 mm	0.362 in	9.2 mm	14
