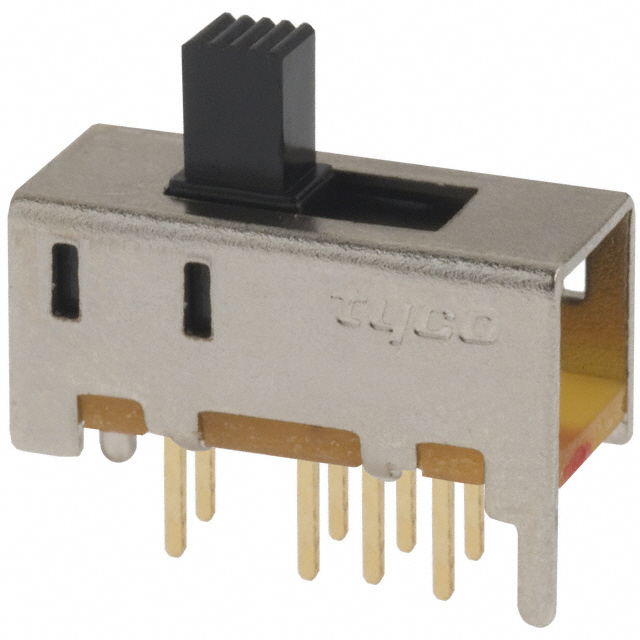

MHS2 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH SLIDE DPDT 300MA 125V

Part	Electrical Life	Mechanical Life	Actuator Material	Switch Travel	Operating Force	Voltage Rating - AC	Contact Material	Features	Switch Function	Contact Timing	Actuator Type	Contact Finish	Termination Style	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Current Rating (Amps)	Circuit	Voltage Rating - DC
TE Connectivity AMP Connectors MHS223RA	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	125 V	Copper Alloy	Epoxy Sealed Terminals	On-Off-On	Shorting (MBB)	Standard	Silver	PC Pin	4.5 mm	85 °C	-20 ░C	Right Angle Through Hole	300 mA	DPDT
TE Connectivity AMP Connectors MHS222K	15000 Cycles	15000 Cycles	Aluminum	4 mm	600 gf	125 V	Copper Alloy	Epoxy Sealed Terminals	On-On	Shorting (MBB)	Baton	Silver	PC Pin	10 mm	85 °C	-20 ░C	Through Hole	300 mA	DPDT
TE Connectivity AMP Connectors MHS233RA	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	125 V	Copper Alloy	Epoxy Sealed Terminals	On-On-On	Shorting (MBB)	Standard	Silver	PC Pin	4.5 mm	85 °C	-20 ░C	Right Angle Through Hole	300 mA	DP3T
TE Connectivity AMP Connectors MHS233	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	125 V	Copper Alloy	Epoxy Sealed Terminals	On-On-On	Shorting (MBB)	Standard	Silver	PC Pin	4.5 mm	85 °C	-20 ░C	Through Hole	300 mA	DP3T
TE Connectivity AMP Connectors MHS233G	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	20 V	Copper Alloy	Epoxy Sealed Terminals	On-On-On	Shorting (MBB)	Standard	Gold	PC Pin	4.5 mm	85 °C	-20 ░C	Through Hole	0.4 VA	DP3T	20 V
TE Connectivity AMP Connectors MHS223	15000 Cycles	15000 Cycles	Polyoxymethylene (Acetal) (POM)	2 mm	600 gf	125 V	Copper Alloy	Epoxy Sealed Terminals	On-Off-On	Shorting (MBB)	Standard	Silver	PC Pin	4.5 mm	85 °C	-20 ░C	Through Hole	300 mA	DPDT
