OA200AP Series
Manufacturer: ORION FANS
Beta
⌘K

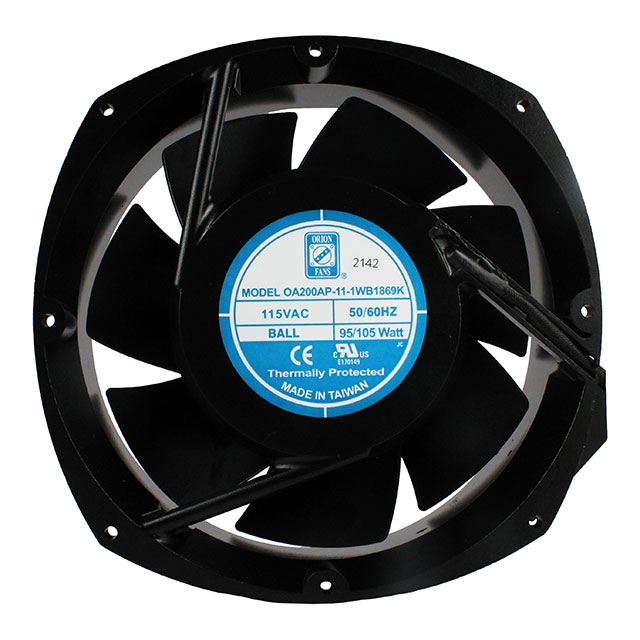

AC AXIAL FAN, 115V, CIRCULAR, 220 MM, 72 MM, BALL BEARING, 485 CFM
| Part | Lifetime @ Temp. | Material - Frame | Material - Blade | Termination | Power (Watts) | Size / Dimension [x] | Size / Dimension | Size / Dimension [z] | Ingress Protection | RPM | Approval Agency | Air Flow | Air Flow | Voltage - Rated | Fan Type | Width [x] | Noise | Features | Bearing Type | Weight | Weight | Static Pressure | Static Pressure | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ORION FANS | 50000 Hrs | Aluminum | Steel | 2 | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP69K | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 115 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | |
 ORION FANS | 50000 Hrs | Aluminum | Steel | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP68 - Dust Tight Waterproof | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 230 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | 2 Wire Leads | |
 ORION FANS | 50000 Hrs | Aluminum | Steel | 2 | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP68 - Dust Tight Waterproof | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 115 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | |
 ORION FANS | 50000 Hrs | Aluminum | Steel | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP69K | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 115 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | 2 Wire Leads | |
 ORION FANS | 50000 Hrs | Aluminum | Steel | 2 | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP68 - Dust Tight Waterproof | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 230 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | |
ORION FANS | 50000 Hrs | Aluminum | Steel | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP68 - Dust Tight Waterproof | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 115 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | 2 Wire Leads | |
 ORION FANS | 50000 Hrs | Aluminum | Steel | 2 | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP69K | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 230 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | |
ORION FANS | 50000 Hrs | Aluminum | Steel | 105 W | 220 mm | Rectangular/Rounded | 200 mm | IP69K | 3300 RPM | CE cURus TUV UR | 13.58 m³/min | 485 CFM | 230 VAC | Tubeaxial | 70 mm | 68 dB | Thermal Overload Protector (TOP) | Ball | 2.1 kg | 4.6 lbs | 0.93 in H2O | 231.7 Pa | 2 Wire Leads |
