3221-16 Series
Manufacturer: CNC Tech
Beta
⌘K

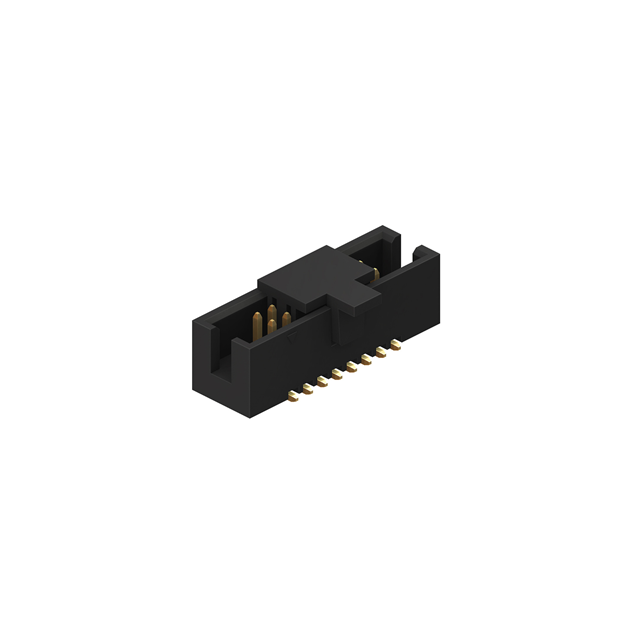

CONN HEADER SMD 16POS 1.27MM
| Part | Contact Finish Thickness - Post | Contact Finish - Post | Connector Type | Style | Number of Positions Loaded | Termination | Contact Finish Thickness - Mating | Features | Contact Shape | Insulation Color | Contact Material | Voltage Rating | Insulation Material | Fastening Type | Contact Type | Shrouding | Operating Temperature [Min] | Operating Temperature [Max] | Material Flammability Rating | Number of Positions | Number of Rows [custom] | Pitch - Mating | Pitch - Mating | Insulation Height [z] | Insulation Height [z] | Contact Finish - Mating | Row Spacing - Mating | Row Spacing - Mating | Mounting Type | Current Rating (Amps) | Contact Length - Post | Contact Length - Post | Insulation Height | Insulation Height |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CNC Tech | Flash | Gold | Header | Board to Cable/Wire | All | Solder | Flash | Keying Slot Pick and Place | Square | Black | Brass | 50 VAC | Nylon 9T Polyamide (PA9T) | Push-Pull | Male Pin | Shrouded - 4 Wall | -40 C | 105 ░C | UL94 V-0 | 16 | 2 | 1.27 mm | 0.05 in | 0.213 " | 5.4 mm | Gold | 0.05 in | 1.27 mm | Surface Mount | 1 A | ||||
 CNC Tech | Flash | Gold | Header | Board to Cable/Wire | All | Solder | Flash | Keying Slot | Square | Black | Brass | 50 VAC | Nylon 9T Polyamide (PA9T) | Push-Pull | Male Pin | Shrouded - 4 Wall | -40 C | 105 ░C | UL94 V-0 | 16 | 2 | 1.27 mm | 0.05 in | 0.213 " | 5.4 mm | Gold | 0.05 in | 1.27 mm | Through Hole | 1 A | 0.083 in | 2.11 mm | ||
 CNC Tech | Flash | Gold | Header | Board to Cable/Wire | All | Solder | Flash | Keying Slot | Square | Black | Brass | 50 VAC | Nylon 9T Polyamide (PA9T) | Push-Pull | Male Pin | Shrouded - 4 Wall | -40 C | 105 ░C | UL94 V-0 | 16 | 2 | 1.27 mm | 0.05 in | Gold | 0.05 in | 1.27 mm | Right Angle Through Hole | 1 A | 0.083 in | 2.11 mm | 0.201 in | 5.1 mm |
