TS2C7F Series
Manufacturer: SWITCHCRAFT/CONXALL
Beta
⌘K

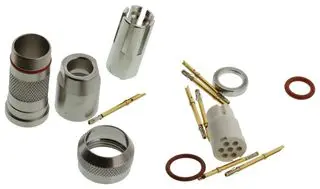

CIRCULAR CONNECTOR, IP68, TS2C DURA-TWIST SERIES, CABLE MOUNT PLUG, 7 CONTACTS, CRIMP SOCKET
| Part | Ingress Protection | Color | Features | Contact Material | Shielding | Contact Finish - Mating | Insert Material | Shell Finish | Applications | Mounting Type | Shell Material | Backshell Material, Plating | Number of Positions | Fastening Type | Orientation | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Connector Type | Primary Material | Termination | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SWITCHCRAFT/CONXALL | IP66 IP67 IP68 | Silver | Backshell Coupling Nut | Copper Alloy | Shielded | Gold | Liquid Crystal Polymer (LCP) | Electroless Nickel | Agriculture Audio General Medical Testing Equipment & Measurement | Free Hanging (In-Line) | Copper Alloy | Copper Alloy Nickel | 7 | Threaded | Keyed | -40 C | 135 °C | 4.57 mm | 0.18 " | 5.49 mm | 0.216 in | Plug Female Sockets | Metal | Crimp Solder Cup | 30 VAC |
