G-INS-PG13,5 Series

Catalog

CABLE ACCESSORIES CABLE GLAND NICKEL PLATED BRASS SILVER NICKEL

Part	Thread Size	Includes	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Thread Length	Thread Length	Material
Phoenix Contact 1411173	PG13.5	O-Ring Seal	-40 C	100 °C	IP66 IP68 IP69	12 mm	0.472 in	Silver	Cable Gland	6 mm	0.236 in	0.256 in	6.5 mm	Brass Nickel Plated

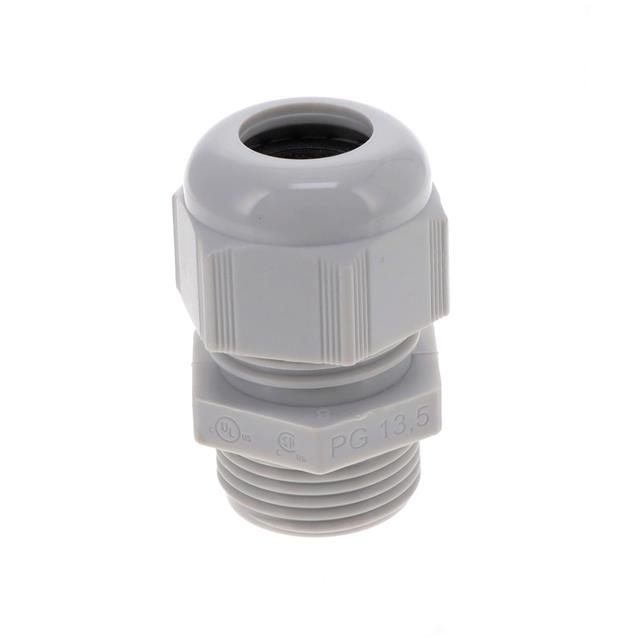

Phoenix Contact 1424488	PG13.5	Seal	-40 C	100 °C	IP68 - Dust Tight Waterproof	12 mm	0.472 in	Gray	Cable Gland	6 mm	0.236 in	0.394 in	10 mm	Polyamide (PA) Nylon

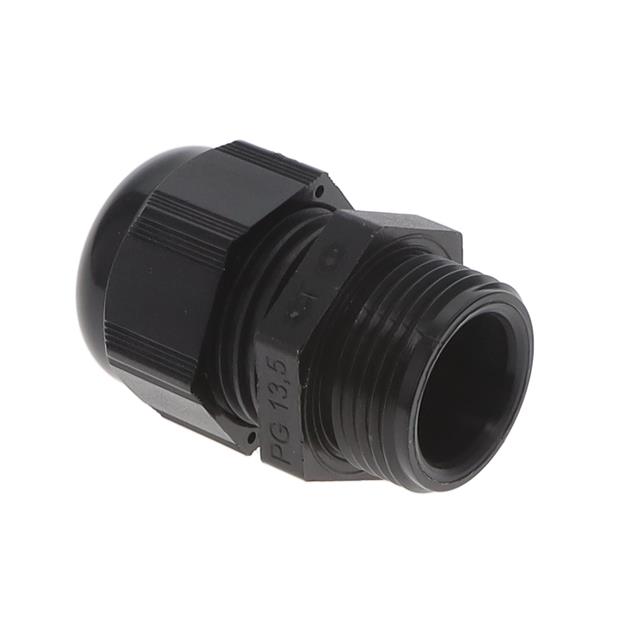

Phoenix Contact 1424498	PG13.5	Seal	-40 C	100 °C	IP68 - Dust Tight Waterproof	12 mm	0.472 in	Black	Cable Gland	6 mm	0.236 in	0.394 in	10 mm	Polyamide (PA) Nylon
