PT17-21 Series

Catalog

SENSOR PHOTO 940NM TOP VIEW 0805

Part	Orientation	Voltage - Collector Emitter Breakdown (Max) [Max]	Power - Max [Max]	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Wavelength	Mounting Type

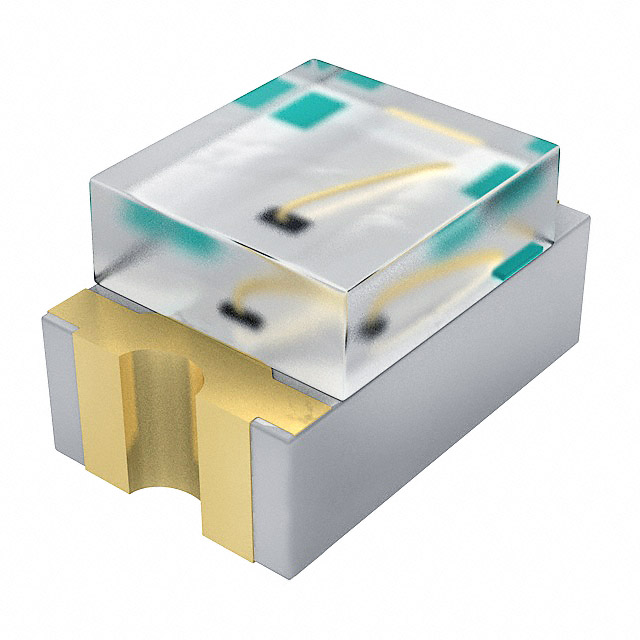

Everlight Electronics Co Ltd PT17-21C/L41/TR8	Top View	30 V	75 mW	100 nA	20 mA	0805	85 °C	-25 °C	940 nm	Surface Mount

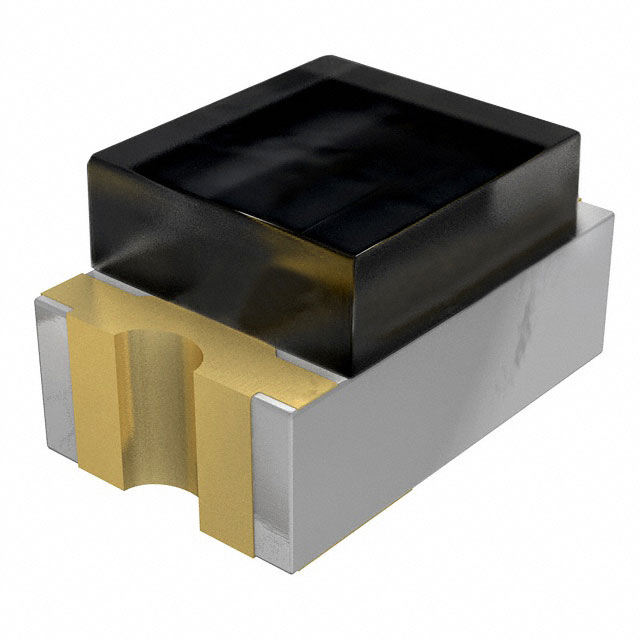

Everlight Electronics Co Ltd PT17-21B/L41/TR8	Top View	30 V	75 mW	100 nA	20 mA	0805	85 °C	-25 °C	940 nm	Surface Mount
