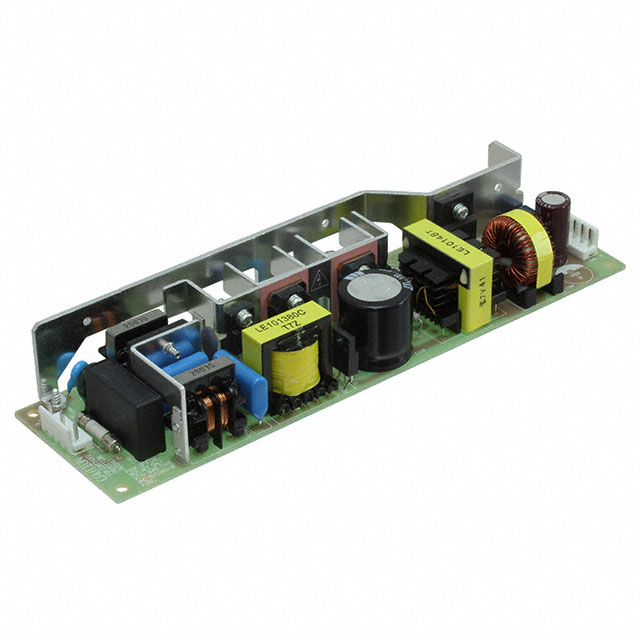

LEA100F Series
Manufacturer: Cosel USA, Inc.
Beta
⌘K
AC/DC CONVERTER 9V 100W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Outputs | Current - Output 1 | Efficiency | Approval Agency | Mounting Type | Features | Type | Applications | Power (Watts) | Voltage - Output 1 | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Voltage - Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cosel USA, Inc. | 70 °C | -20 °C | 1 | 11.5 A | 81 % | CE cURus TUV | Chassis Mount | Universal Input | Open Frame | ITE (Commercial) | 100 W | 9 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 20 A | 78 % | CE cURus TUV | Chassis Mount | Adjustable Output Universal Input | Open Frame | ITE (Commercial) | 100 W | 5 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 4.3 A | 84 % | CE cURus TUV | Chassis Mount | Universal Input | Open Frame | ITE (Commercial) | 100 W | 24 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 3.5 A | 85 % | CE cURus TUV | Chassis Mount | Universal Input | Open Frame | ITE (Commercial) | 100 W | 30 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 3.5 A | 85 % | CE cURus TUV | Chassis Mount | Adjustable Output Universal Input | Open Frame | ITE (Commercial) | 100 W | 30 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 20 A | 73 % | CE cURus TUV | Chassis Mount | Adjustable Output Universal Input | Enclosed | ITE (Commercial) | 100 W | 3.3 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
 Cosel USA, Inc. | 70 °C | -20 °C | 1 | 2.2 A | 85 % | CE cURus TUV | Chassis Mount | Universal Input | Open Frame | ITE (Commercial) | 100 W | 48 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 2.2 A | 85 % | CE cURus TUV | Chassis Mount | Universal Input | Enclosed | ITE (Commercial) | 100 W | 48 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 4.3 A | 84 % | CE cURus TUV | Chassis Mount | Adjustable Output Universal Input | Enclosed | ITE (Commercial) | 100 W | 24 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
Cosel USA, Inc. | 70 °C | -20 °C | 1 | 6.7 A | CE cURus TUV | Chassis Mount | Universal Input | Enclosed | ITE (Commercial) | 100 W | 15 V | 2.44 " | 32 mm | 62 mm | 1.26 " | 8.74 in | 222 mm | 3000 V |
