DA15S065 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

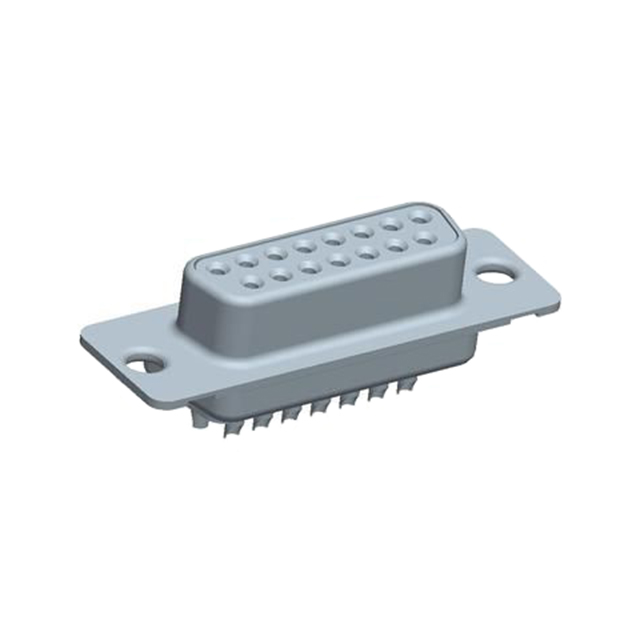

DSUB SIGNAL STC 15SOCKET
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Number of Positions | Color | Current Rating (Amps) | Contact Type | Contact Finish | Connector Type | Flange Feature | Shell Size, Connector Layout | Connector Style | Contact Finish Thickness | Contact Finish Thickness | Dielectric Material | Voltage Rating | Features | Contact Material | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol ICC (FCI) | -55 °C | 125 °C | 2 | Free Hanging (In-Line) | 15 | Natural | 5 A | Signal | Gold GXT™ | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 2 | D-Sub | 0.76 Ám | 30 Áin | Thermoplastic | 300 VDC | Shielded | ||
 Amphenol ICC (FCI) | -55 °C | 125 °C | 2 | Free Hanging (In-Line) | 15 | Natural | 5 A | Signal | Gold GXT™ | Receptacle Female Sockets | Housing/Shell (Unthreaded) | 2 | D-Sub | 0.76 Ám | 30 Áin | Thermoplastic | 300 VDC | Copper Alloy | UL94 V-0 |
