79257 Series

Catalog

CONN HEADER R/A 46POS 2.54MM

Part	Material Flammability Rating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Current Rating (Amps)	Insulation Color	Connector Type	Contact Shape	Shrouding	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating [x]	Contact Length - Mating	Pitch - Mating	Pitch - Mating	Contact Material	Fastening Type	Mounting Type	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Insulation Height	Insulation Height	Contact Type	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Mating	Number of Positions

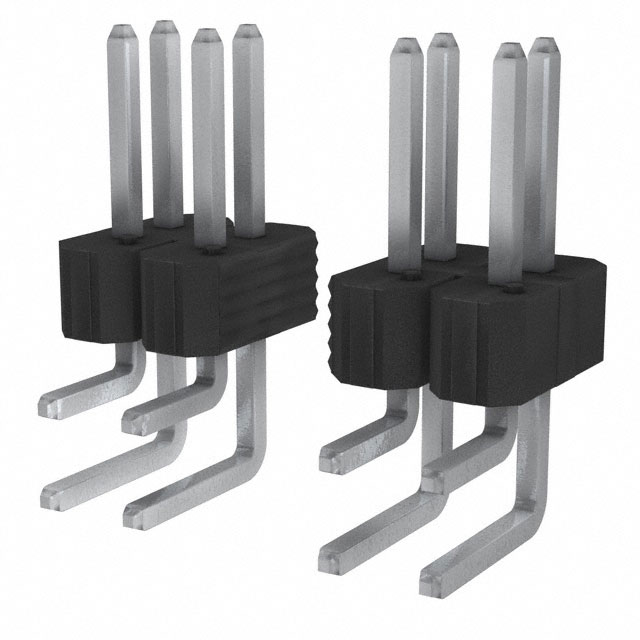

Amphenol ICC (FCI) 79257-446HLF	UL94 V-0	0.12 in	3.05 mm	46	3 A	Black	Header	Square	Unshrouded	Tin	2.54 çm	100 çin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in
Amphenol ICC (FCI) 79257-430HLF	UL94 V-0	0.12 in	3.05 mm	30	3 A	Black	Header	Square	Unshrouded	Tin	2.54 çm	100 çin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in
Amphenol ICC (FCI) 79257-470HLF	UL94 V-0	0.12 in	3.05 mm	70	3 A	Black	Header	Square	Unshrouded	Tin	2.54 çm	100 çin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in

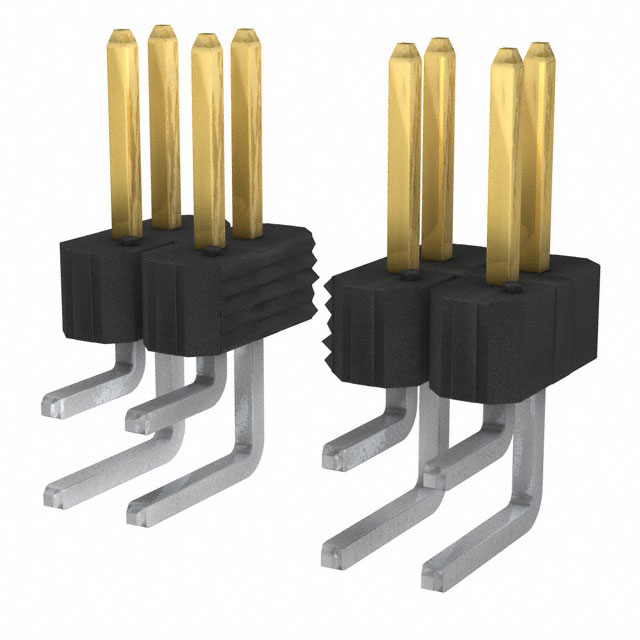

Amphenol ICC (FCI) 79257-140HLF	UL94 V-0	0.12 in	3.05 mm	40	3 A	Black	Header	Square	Unshrouded		0.76 Ám	30 Áin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-172	UL94 V-0	0.12 in	3.05 mm	72	3 A	Black	Header	Square	Unshrouded		0.76 Ám	30 Áin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-148HLF	UL94 V-0	0.12 in	3.05 mm	48	3 A	Black	Header	Square	Unshrouded		0.76 Ám	30 Áin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-272H	UL94 V-0	0.12 in	3.05 mm	72	3 A	Black	Header	Square	Unshrouded		0.38 µm	15 µin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-166HLF	UL94 V-0	0.12 in	3.05 mm	66	3 A	Black	Header	Square	Unshrouded		0.76 Ám	30 Áin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-136HLF	UL94 V-0	0.12 in	3.05 mm	36	3 A	Black	Header	Square	Unshrouded		0.76 Ám	30 Áin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™
Amphenol ICC (FCI) 79257-216HLF	UL94 V-0	0.12 in	3.05 mm		3 A	Black	Header	Square	Unshrouded		0.38 µm	15 µin	0.23 in	5.84 mm	0.1 in	2.54 mm	Phosphor Bronze	Push-Pull	Through Hole Right Angle	2	-65 ░C	130 °C	All	4.83 mm	0.19 in	Male Pin	Solder	2.54 mm	0.1 in	Gold or Gold GXT™	16
