FI-S3 Series

Catalog

CONN PLUG HSG 3POS 1.25MM

Part	Note	Number of Rows	Contact Type	Connector Type	Mounting Type	Color	Fastening Type	Contact Termination	Pitch	Pitch	Insulation Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Number of Positions Loaded	Voltage Rating	Insulation Height	Insulation Height	Contact Material	Termination	Features	Material Flammability Rating	Style	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Finish - Mating	Contact Finish - Post	Insulation Color	Contact Shape

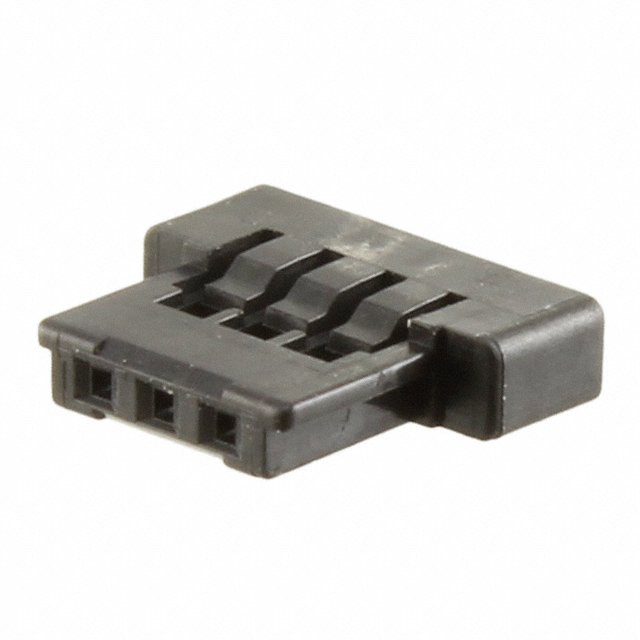

JAE Electronics FI-S3S	Contacts Not Included	1	Female Socket	Plug	Free Hanging (In-Line)	Black	Friction Lock	Crimp	0.049 in	1.25 mm	Glass Filled Nylon 6/6 Polyamide (PA66)
JAE Electronics FI-S3P-HFE-E1500		1	Male Pin	Receptacle	Right Angle Surface Mount		Friction Lock					80 °C	-40 C	Shrouded - 4 Wall	All	200 V	1.8 mm	0.071 in	Copper Alloy	Solder	Solder Retention	UL94 V-0	Board to Cable/Wire	0.049 in	1.25 mm	1 A	Gold	Tin Tin-Alloy	Beige	Square

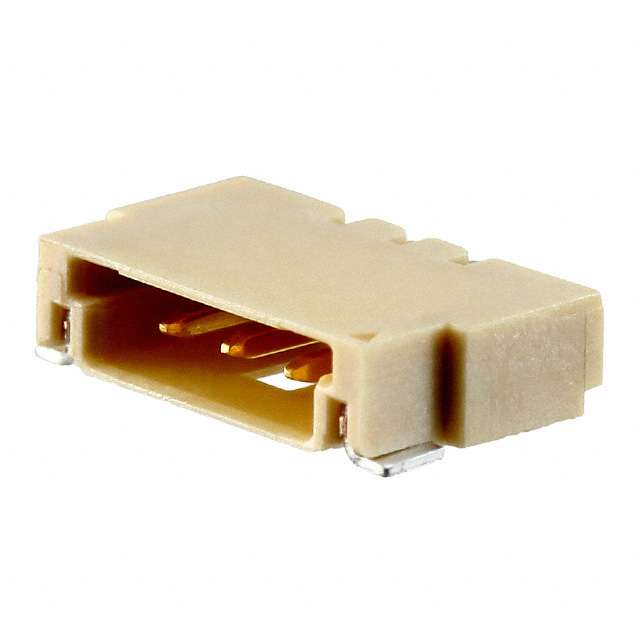

JAE Electronics FI-S3P-HFE		1	Male Pin	Receptacle	Right Angle Surface Mount		Friction Lock					80 °C	-40 C	Shrouded - 4 Wall	All	200 V	1.8 mm	0.071 in	Copper Alloy	Solder	Solder Retention	UL94 V-0	Board to Cable/Wire	0.049 in	1.25 mm	1 A	Gold	Tin Tin-Alloy	Beige	Square
