3RQ306 Series
Manufacturer: Siemens
Beta
⌘K
RELAY GEN PURPOSE SPST 5A 24V
| Part | Release Time | Load - Max Switching | Coil Type | Termination Style | Contact Rating (Current) | Approval Agency | Relay Type | Contact Form | Mounting Type | Coil Voltage | Switching Voltage [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

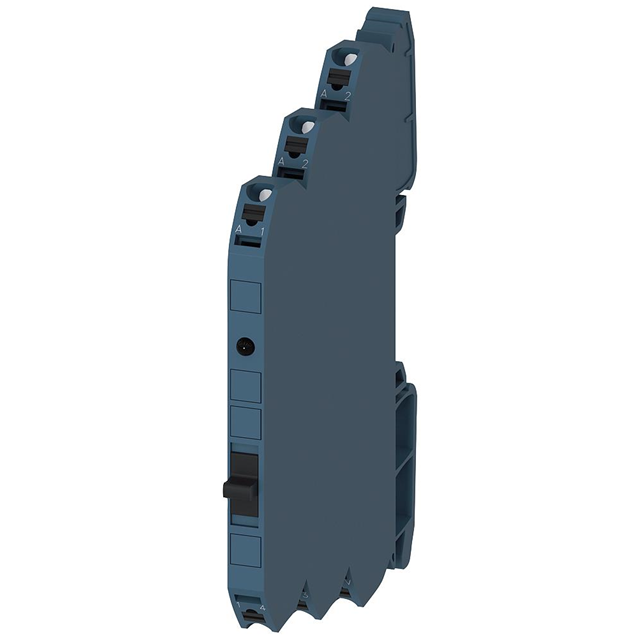

 Siemens | 0.3 ms | 150 W | Non Latching | Spring Terminal | 5 A | CCC CSA EAC UL | General Purpose | SPST-NO (1 Form A) | DIN Rail | 24 VDC | 30 VDC | -25 °C | 60 °C | Lighted Indicator |

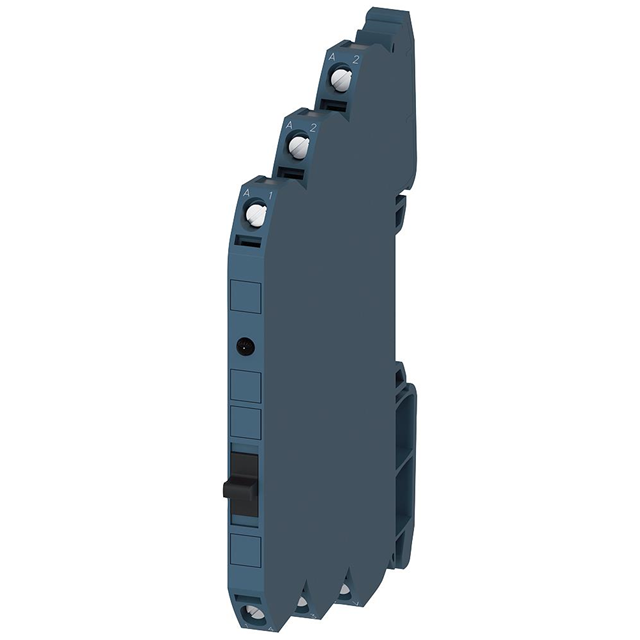

 Siemens | 0.3 ms | 150 W | Non Latching | Screw Terminal | 5 A | CCC CSA EAC UL | General Purpose | SPST-NO (1 Form A) | DIN Rail | 24 VDC | 30 VDC | -25 °C | 60 °C | Lighted Indicator |
